- Type:Reverse Camera, rearview car camera
- View Angle:170°
- Function:Waterproof
- Power:130mA
- Voltage:DC 12V
- Warranty:12 Months
- Place of Origin:Guangdong, China
- Brand Name:Carsanbo or your logo
- Model Number:CAM506AHD
- Resolution:AHD pixel:720P CVBS pixel:640*480
- Image Sensor:PC4536
- TV system:PAL/NTSC optional
- Power supply:DC12V
- Waterproof rate:IP67
- Built in IR light:No
- Sensing area:3.8 mm *2.9 mm
- Shutter speed:1-1/12000
Product Description
| PRODUCT INFORMATION |

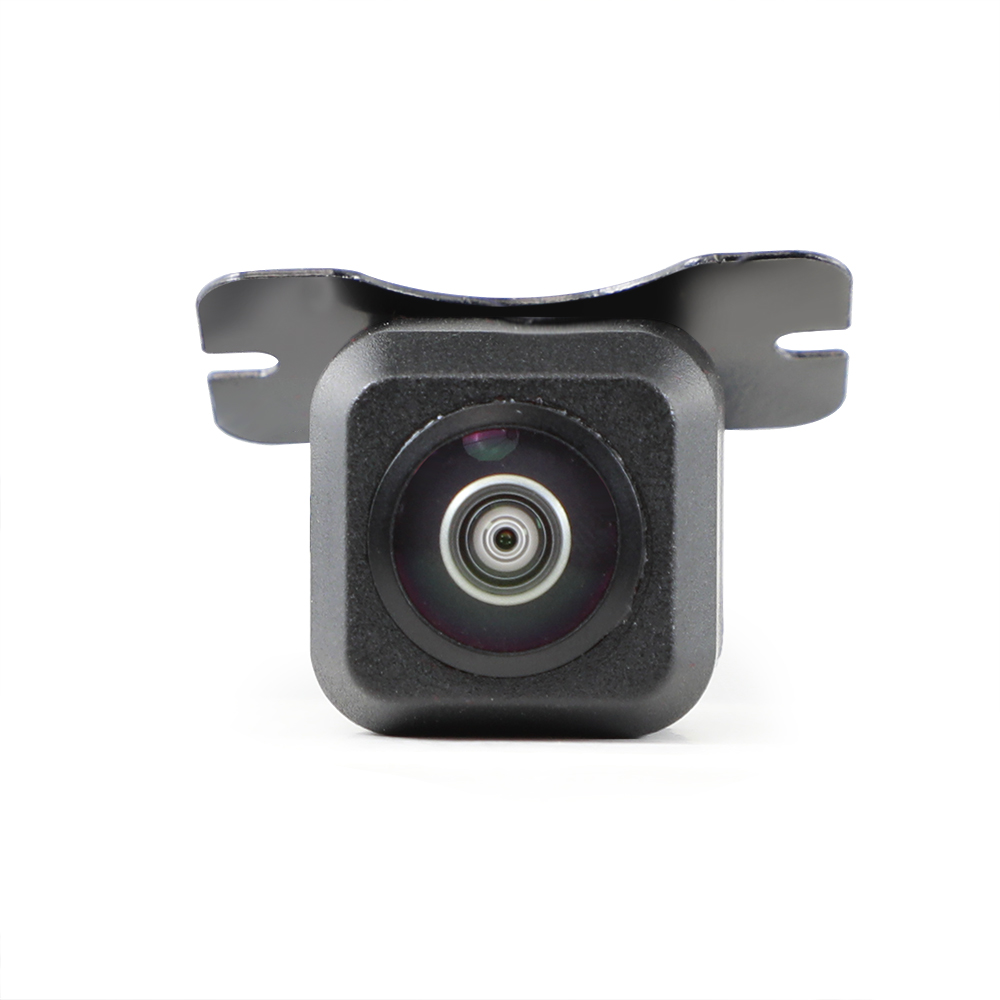

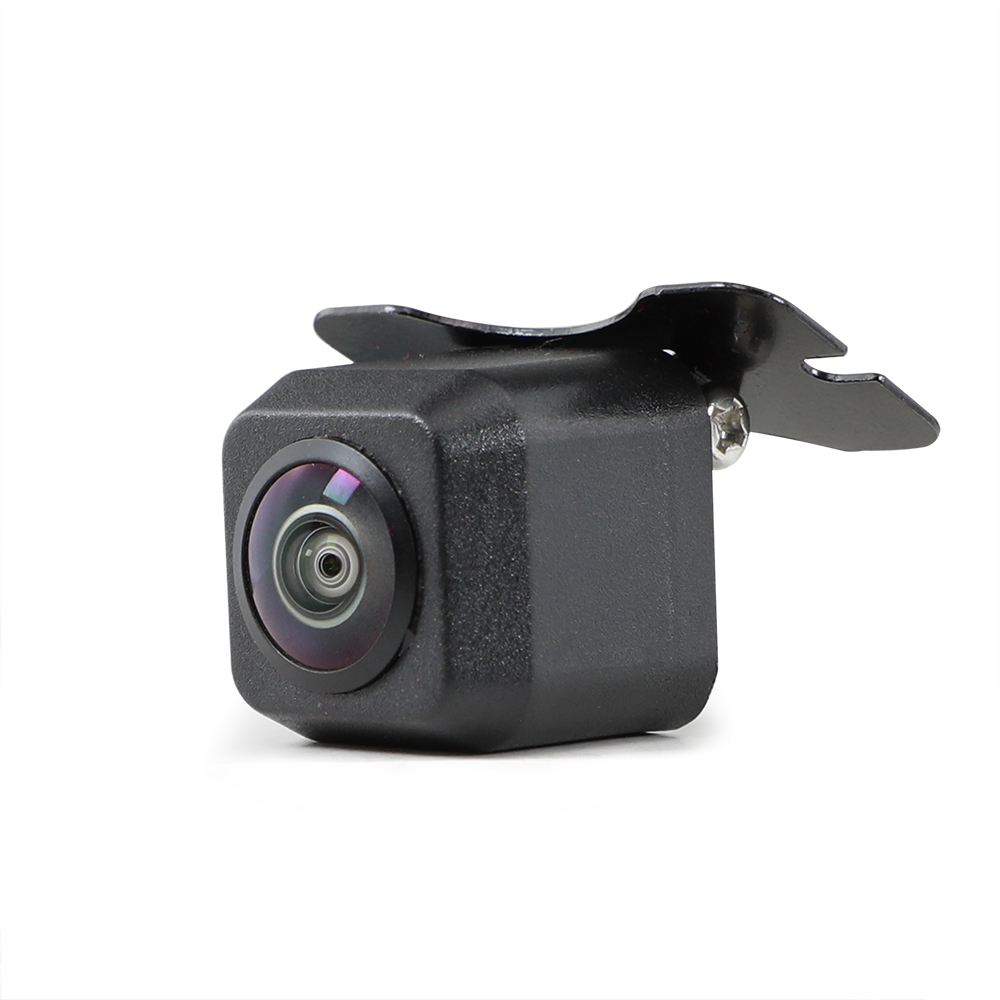

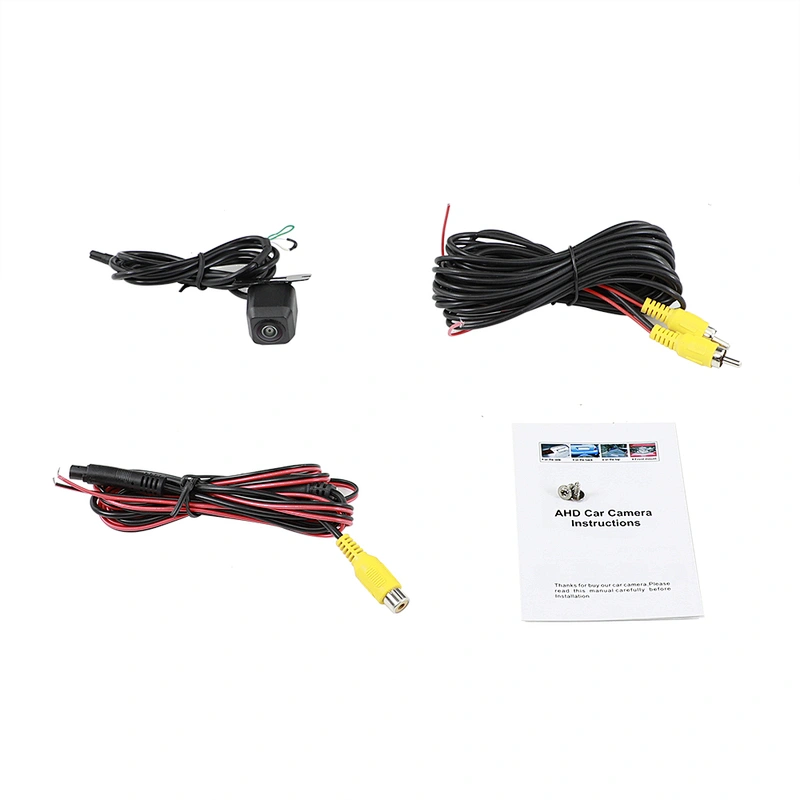

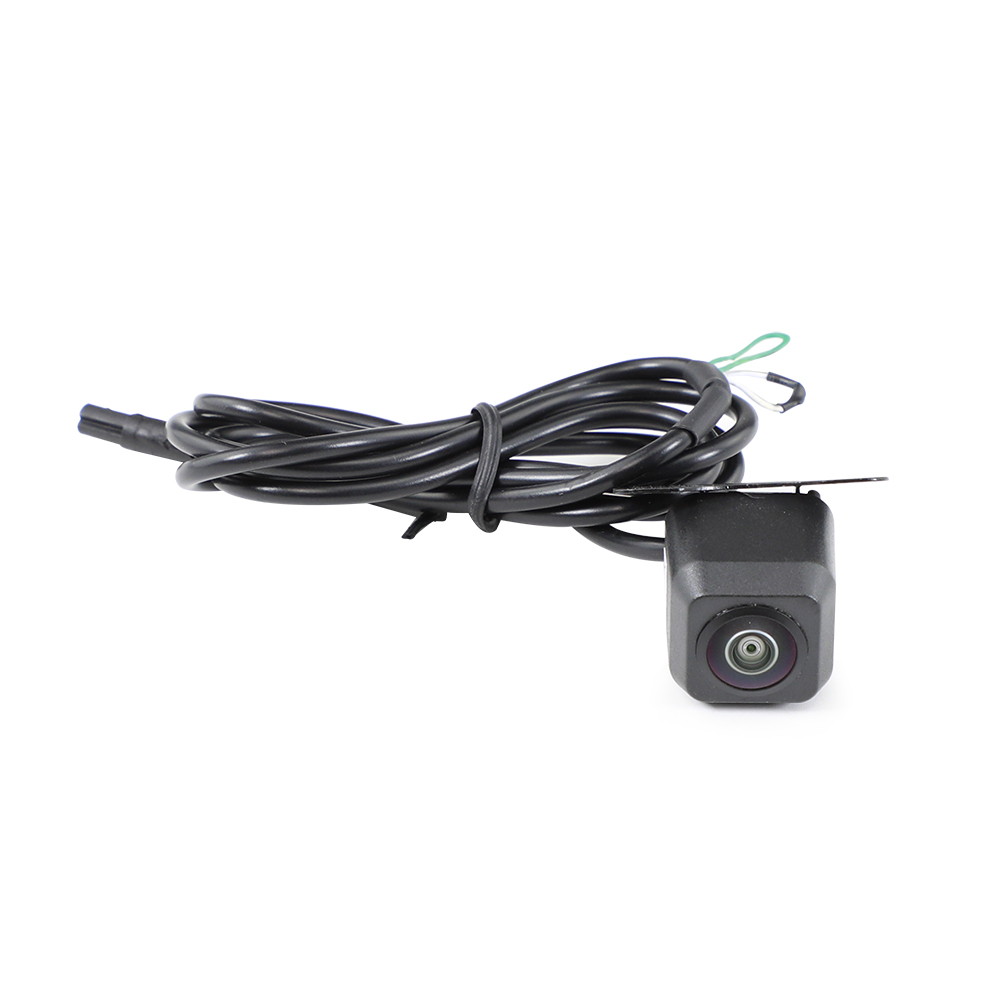

170 degree horizontal angle hanging type camera with AHD and CVBS signal switchable
hanging type camera with CVBS&AHD switch,Reference line switch ,Rearview ,PAL
Chips of camera:4536

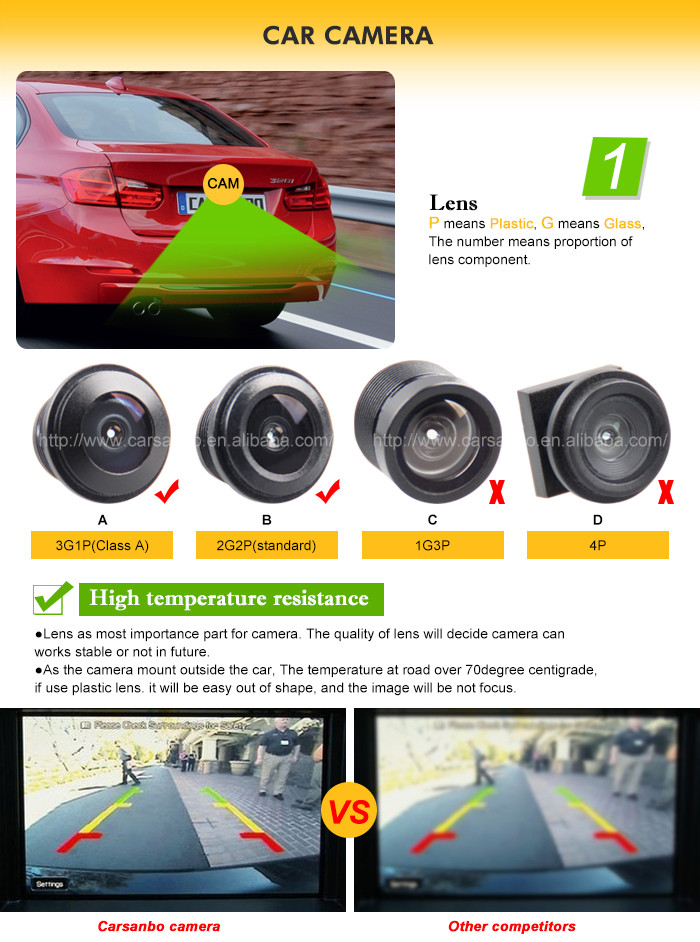

Fish eye glass lens

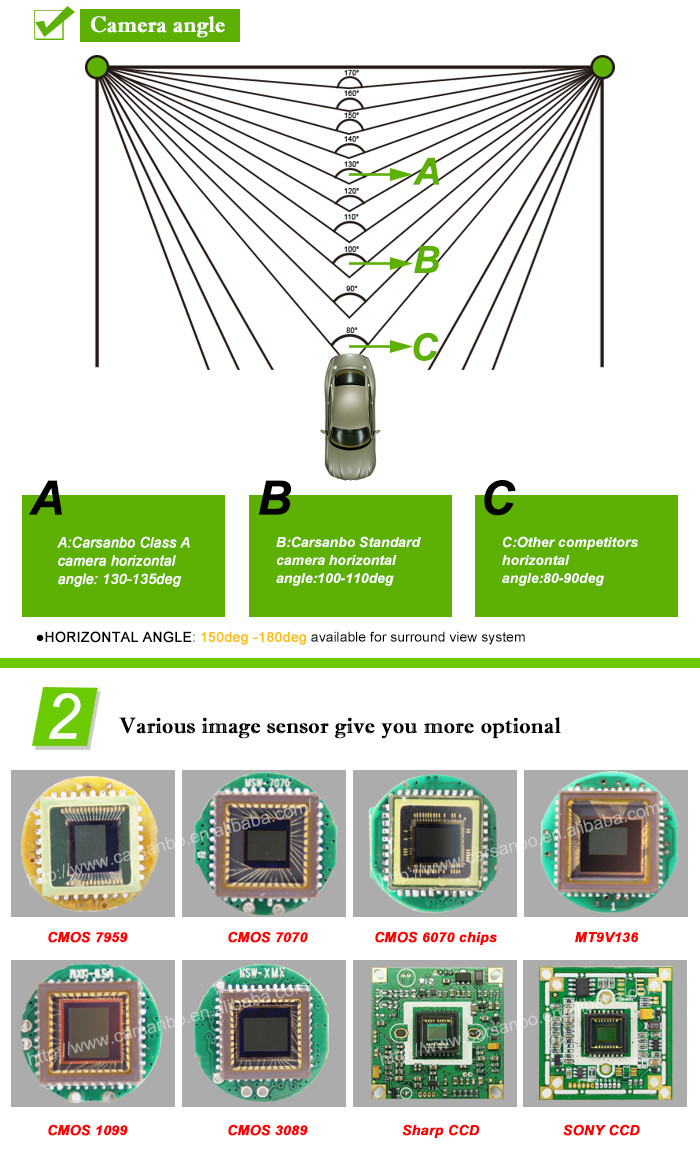

Horizontal angle:170 degree Vertical angle:100 degree

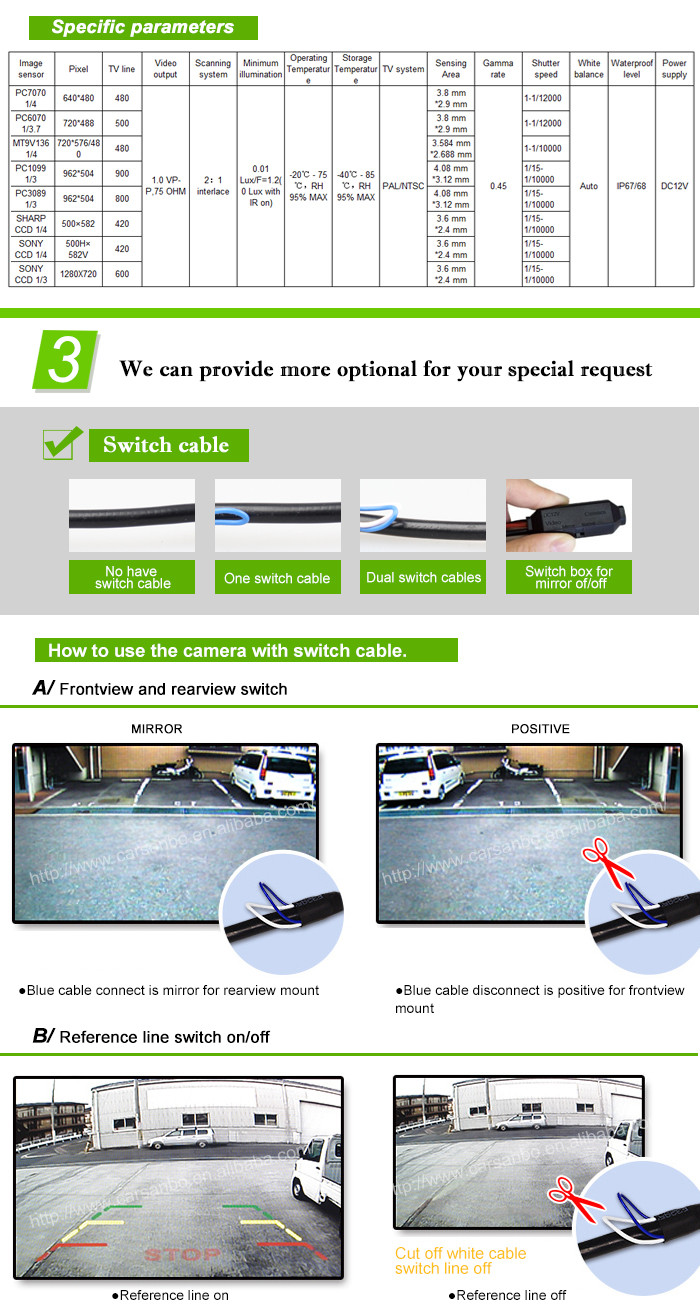

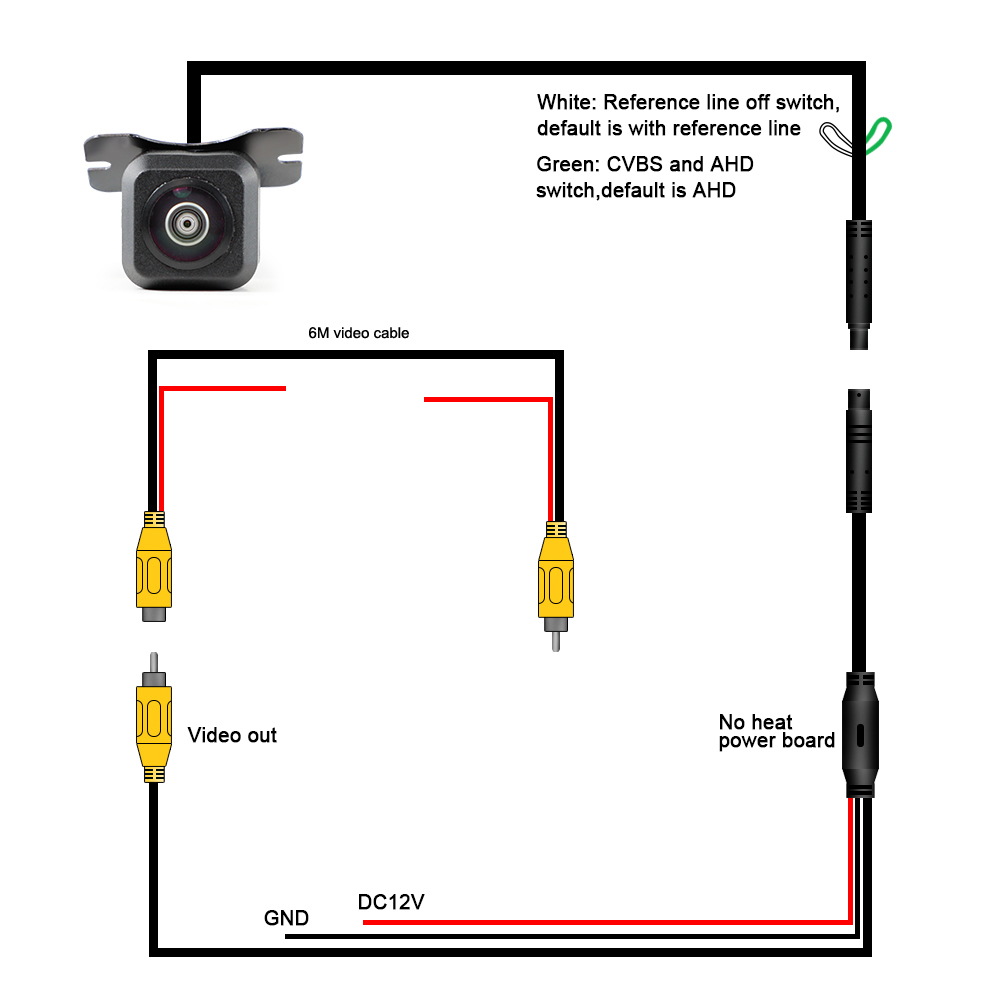

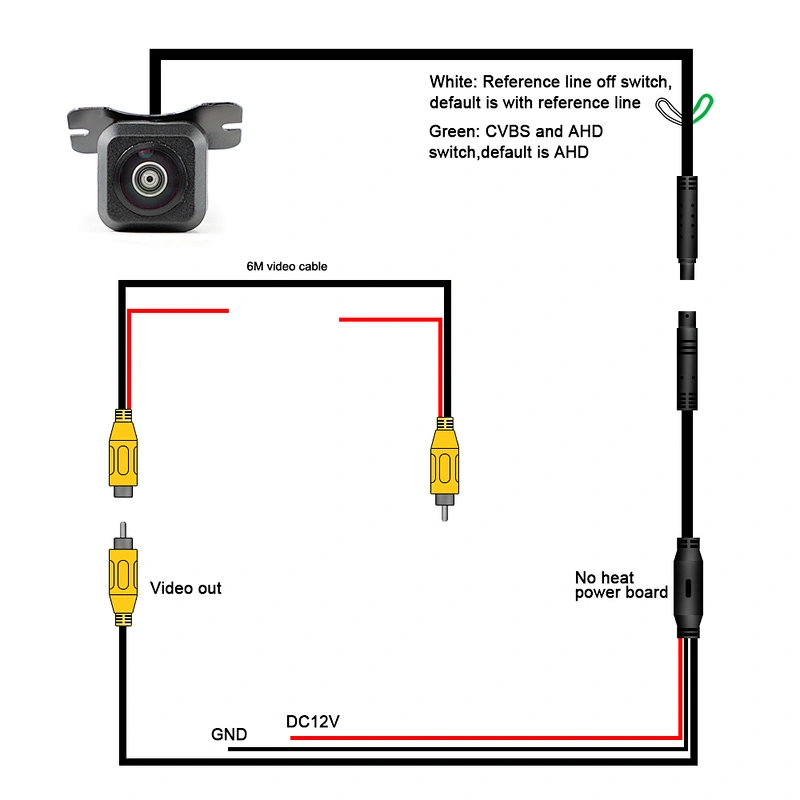

The default is ahd signal, cutting green wire is CVBS signal
The default is rear view with reference line, and cutting the white line is rear view without reference line
AHD pixel:720P CVBS pixel:640*480
Power supply:DC12V
TV system: AHD is PAL,CVBS is NTSC

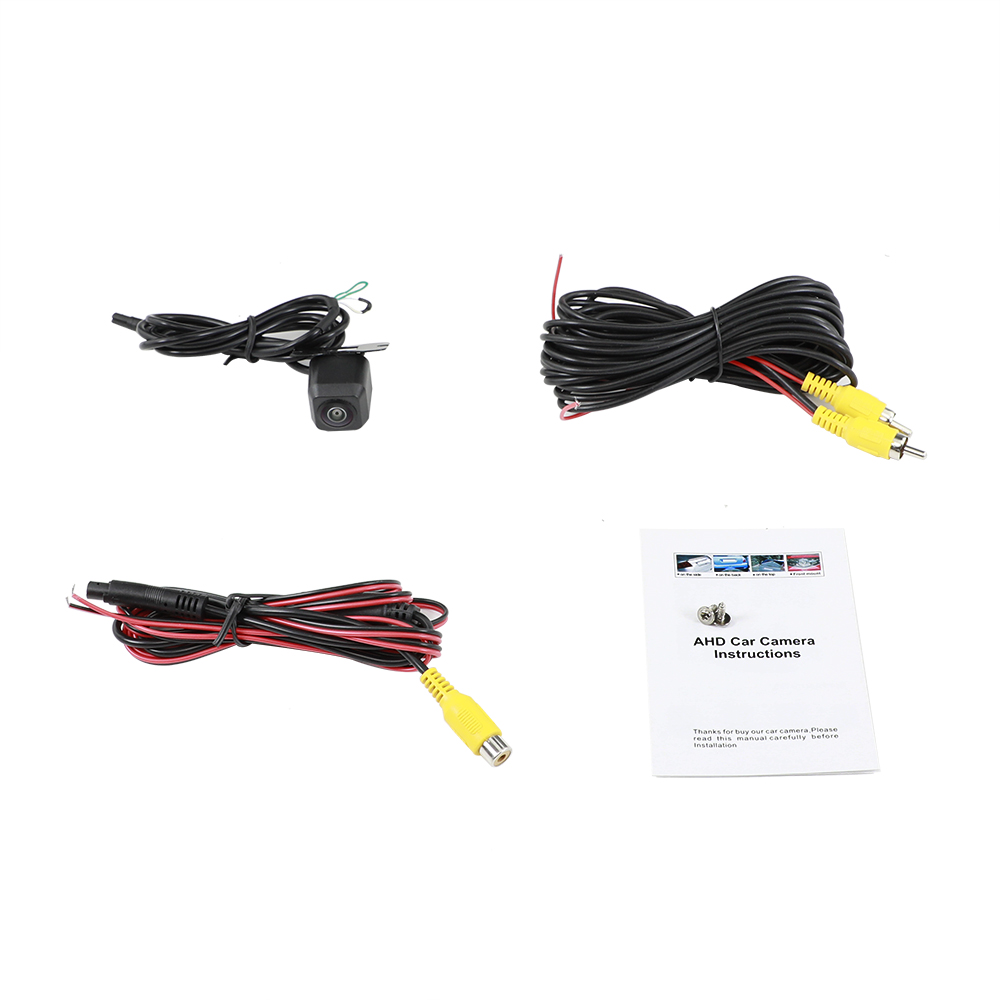

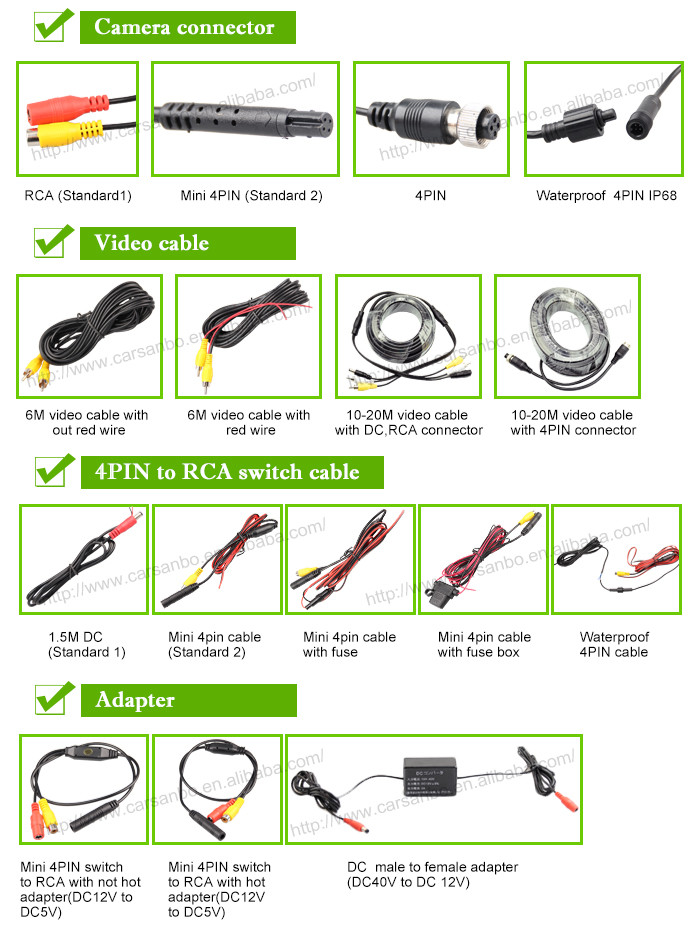

RCA connector with 6M video cable
Super nigh vision
| PRODUCT DISPLAY |
| PRODUCT ADVANTAGE |
Professional Equipme
| PROFESSIONAL EQUIPMENT |

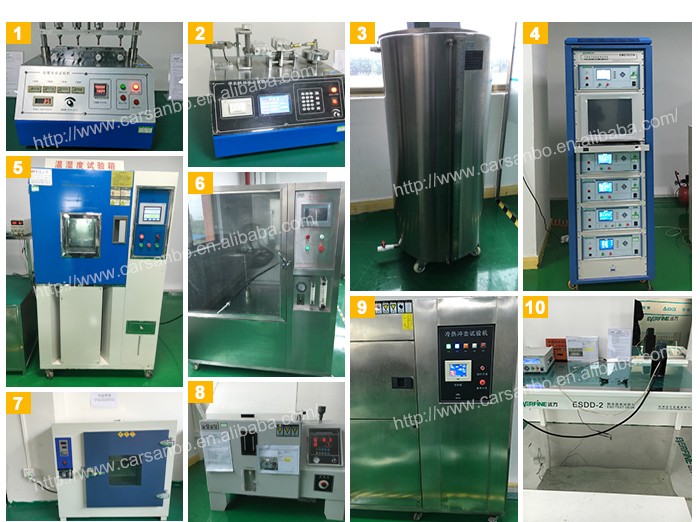

| 1.Button life tester 2.Microcomputer plug test machine 3.Hydrapress measurement 4.Automotive immunity test system 5.Temperature and humidity test chamber | 6.Box rain test chamber 7.Automatism constant temperature Oven 8.Salt Spray Tset Chamber 9.Thermal shock test machine 10.Electrostatic discharge test bench |

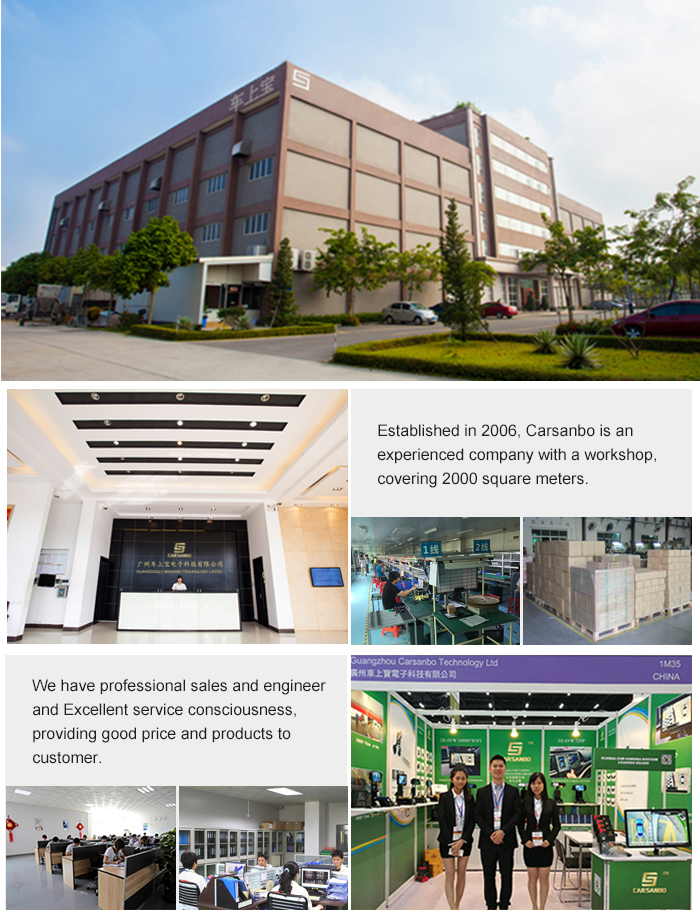

Company Information
| COMPANY INFORMATION |
Contact Us
| CONTACT US |
Shipment & Payment
| SHIPMENT & PAYMENT |
FAQ
| FAQ |
Carsanbo as one of the biggest supplier for car electronic products in Guangzhou China . we are not only providing a lots of car Audio and Video products for Ebay, Amazon buyer .but also providing OEM&ODM service for EU, US, Middle east wholesaler and car factory.
1. Do you accept small order?
Yes, Sample order available. we can also provide drop ship service.
2. What's your Trade Terms?
Ex-work Guangzhou as our standard trade terms, CIF, FOB is available.
3.what’s your warranty policy?
All of our products has one year warranty. we are supplying free spare part for customer repair if quality issue.
4.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
5. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
Yes, Sample order available. we can also provide drop ship service.
2. What's your Trade Terms?
Ex-work Guangzhou as our standard trade terms, CIF, FOB is available.
3.what’s your warranty policy?
All of our products has one year warranty. we are supplying free spare part for customer repair if quality issue.
4.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
5. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
