- Type:Switch box
- Screen Type:without screen
- Screen Size:No Screen
- Angle:other
- Resolution:other
- Function:switch
- Voltage:5-18V
- Working Temperature Range:-10 - 70 ℃
- Warranty:12 Months
- Place of Origin:Guangdong, China
- Brand Name:carsanbo or your logo
- Model Number:SV06
- Working voltage:DC5V-18V
- Working current:<45mA
- Working temperature:-10 ° C - 70 ° C
- Relative humidity:≤95%
- camera chips:PC4089
- Certification:ce
Recommend Products
Products Description

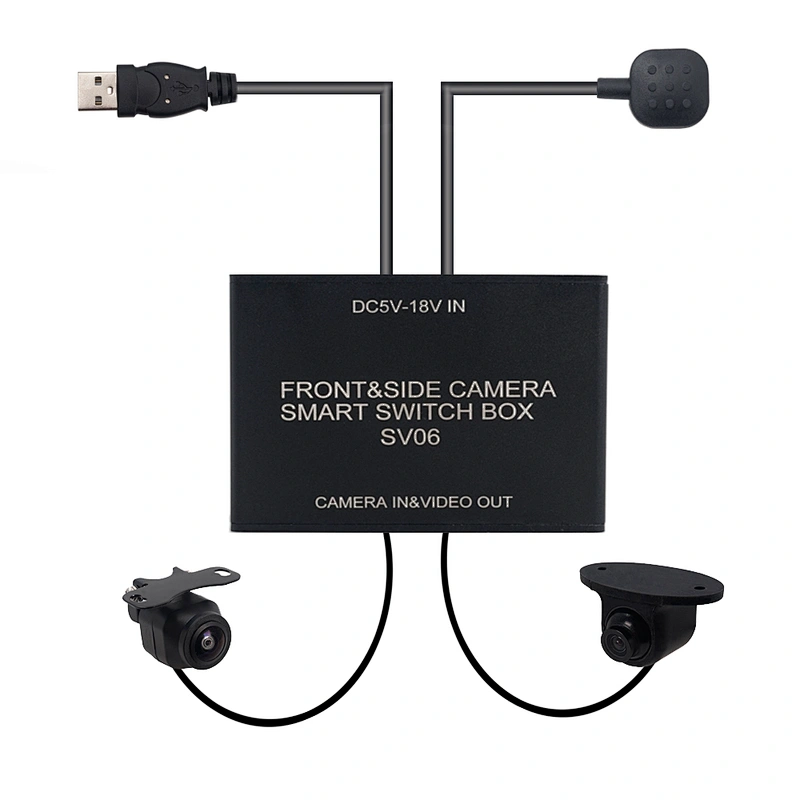

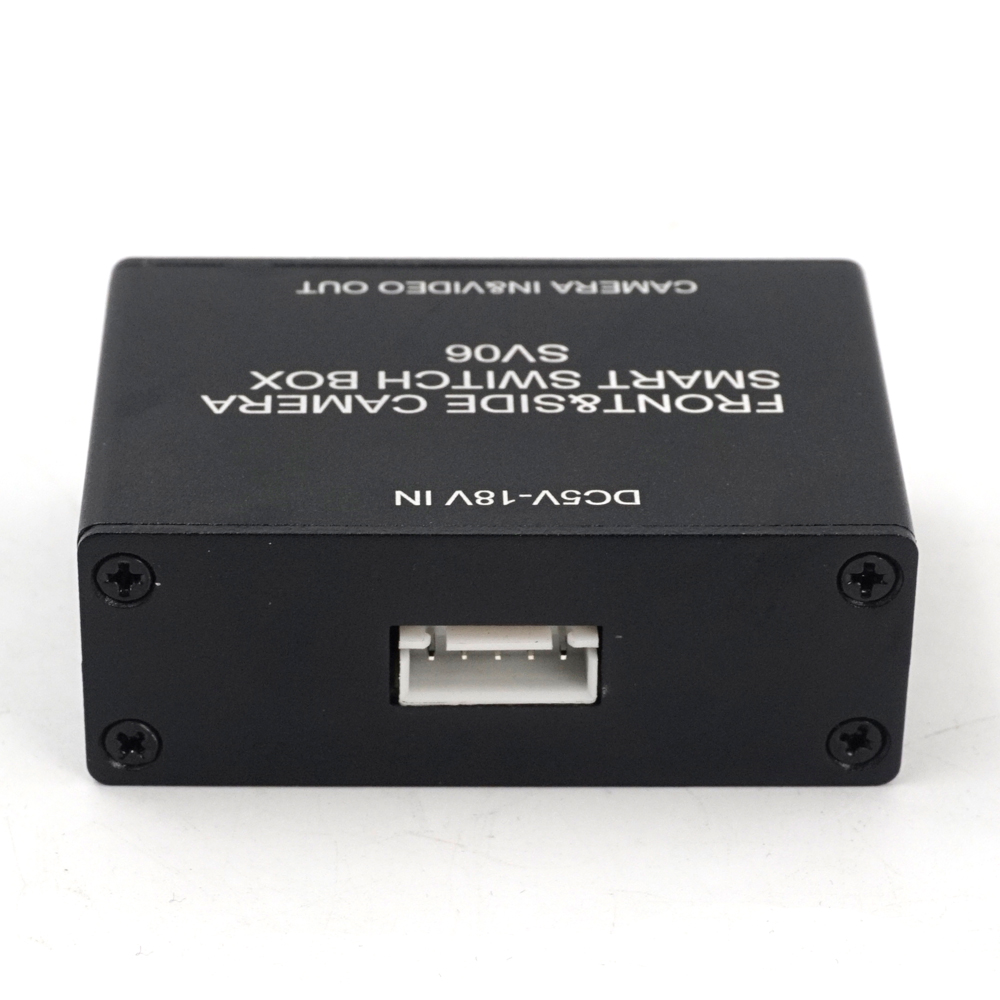

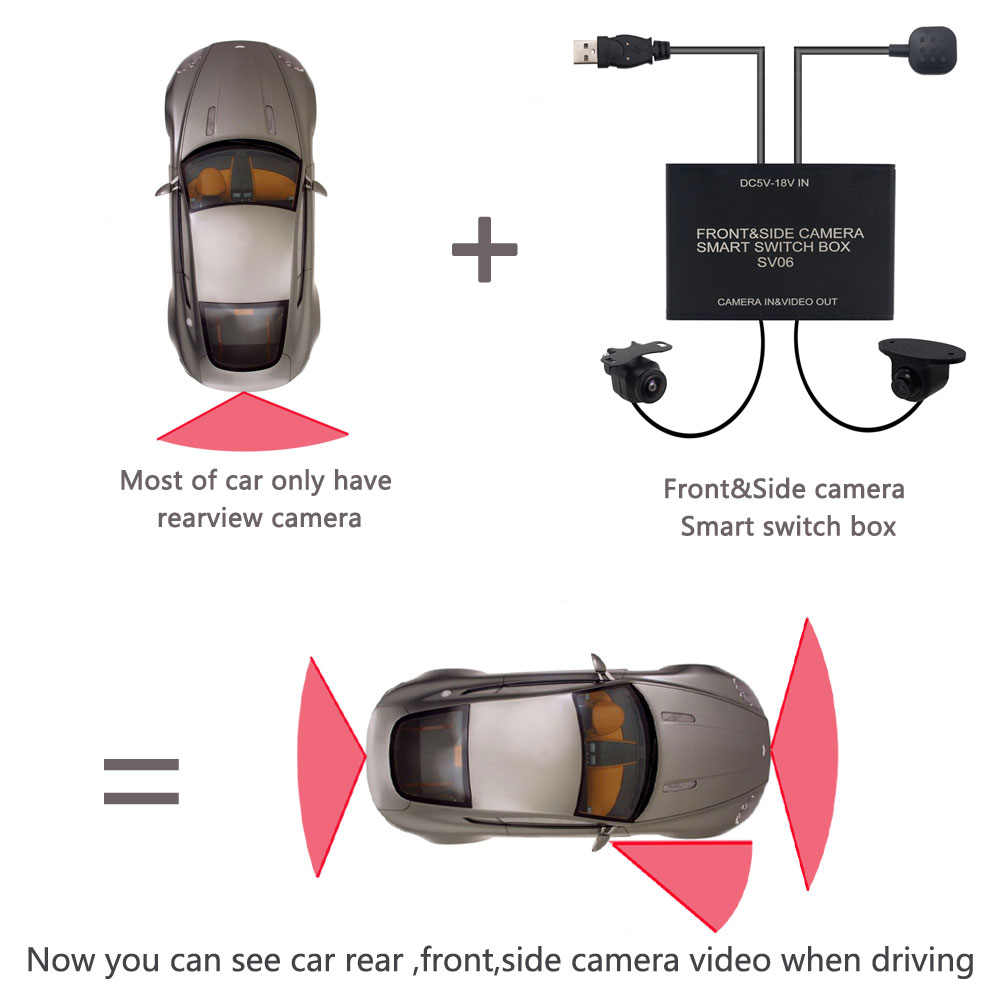

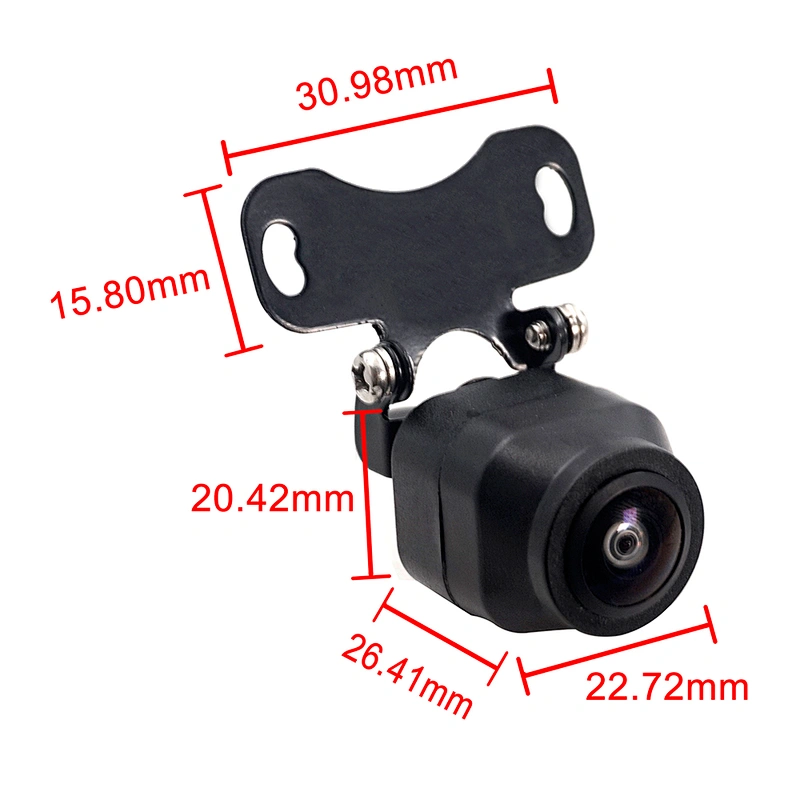

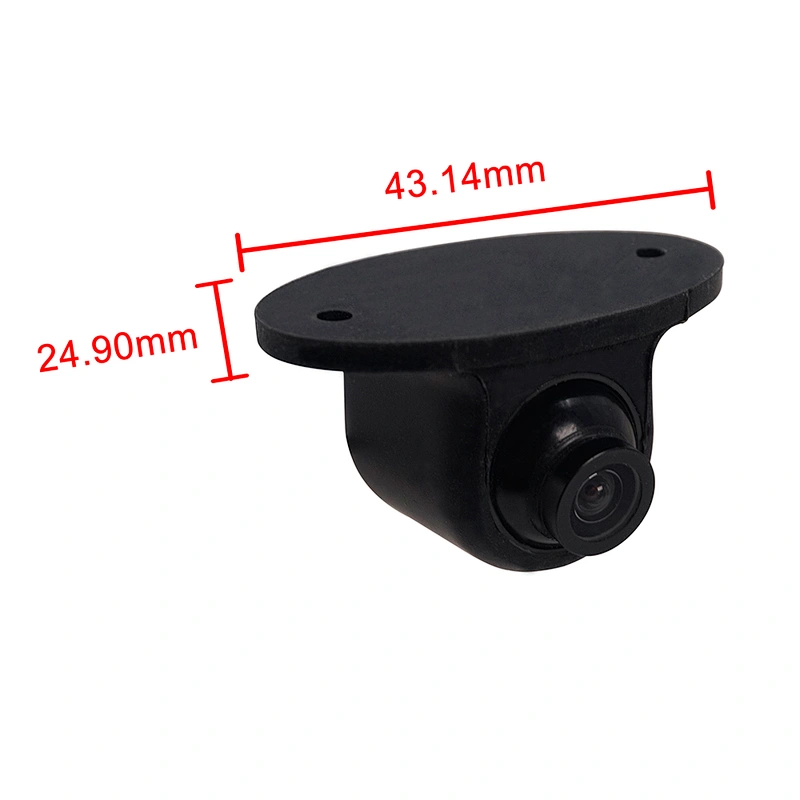

2 way front and side view smart switch box with 150 degree wide angle camera

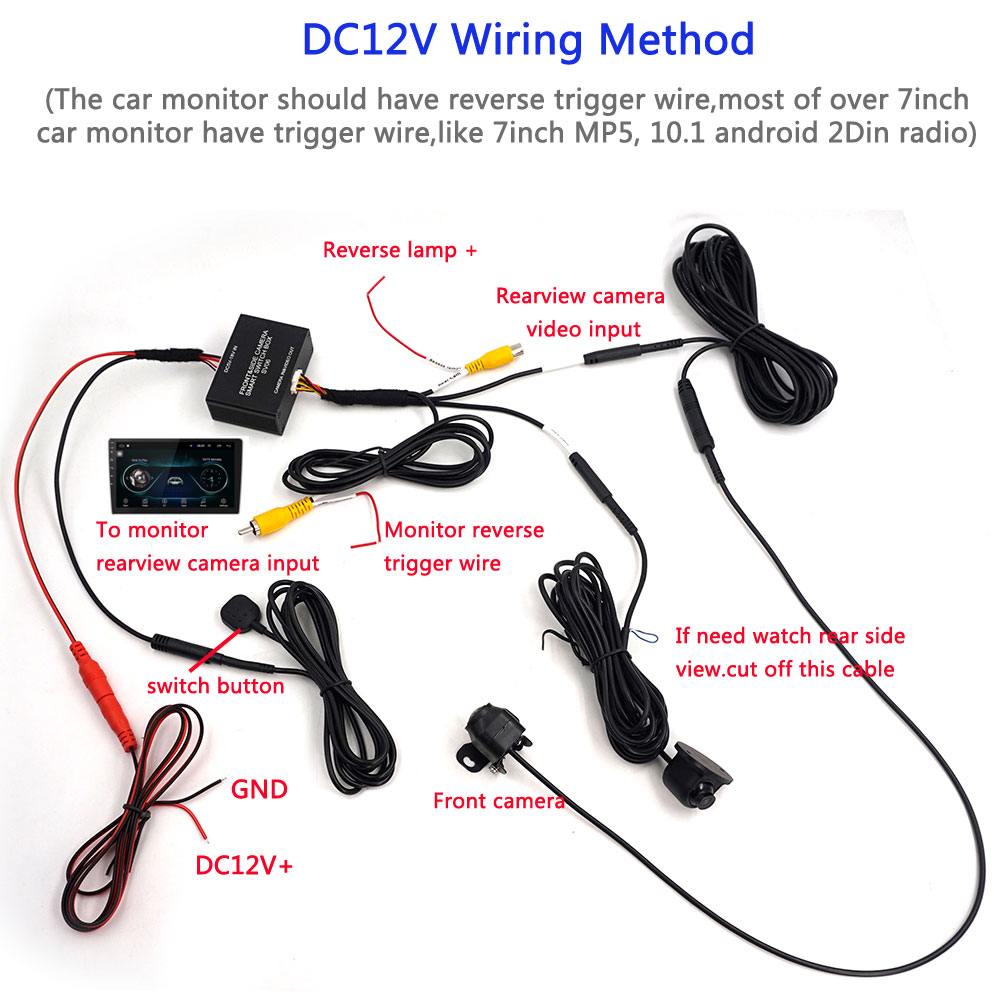

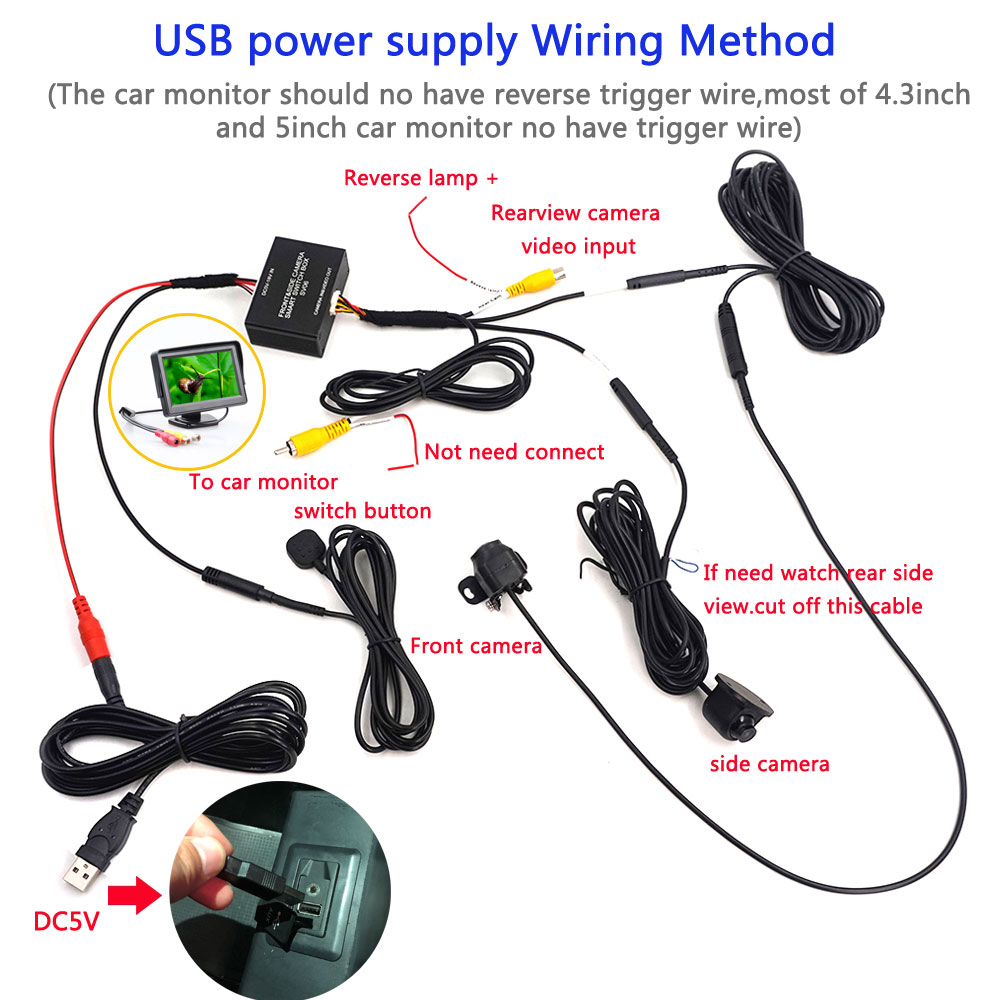

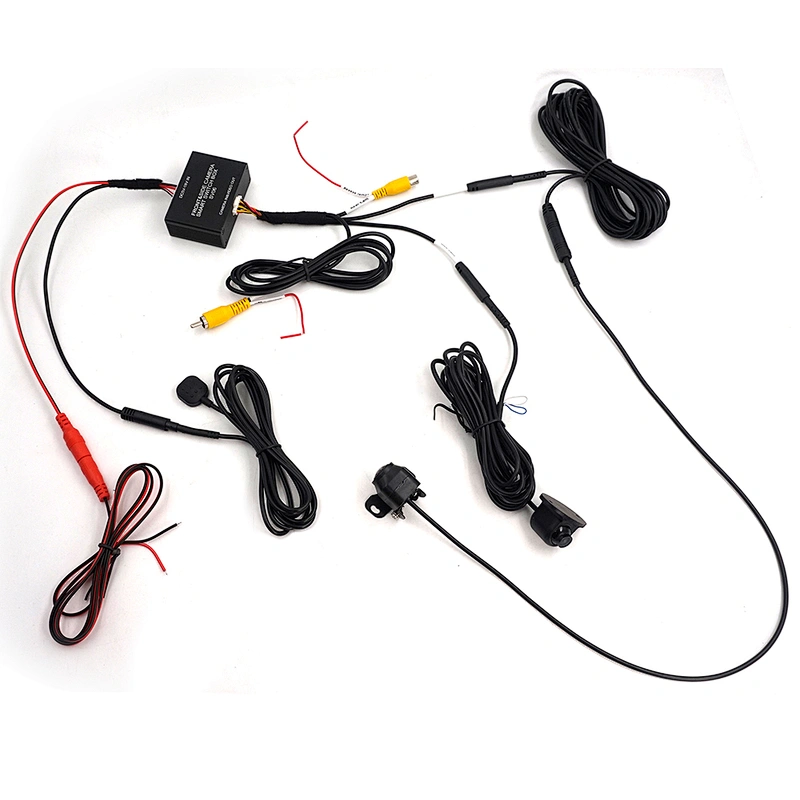

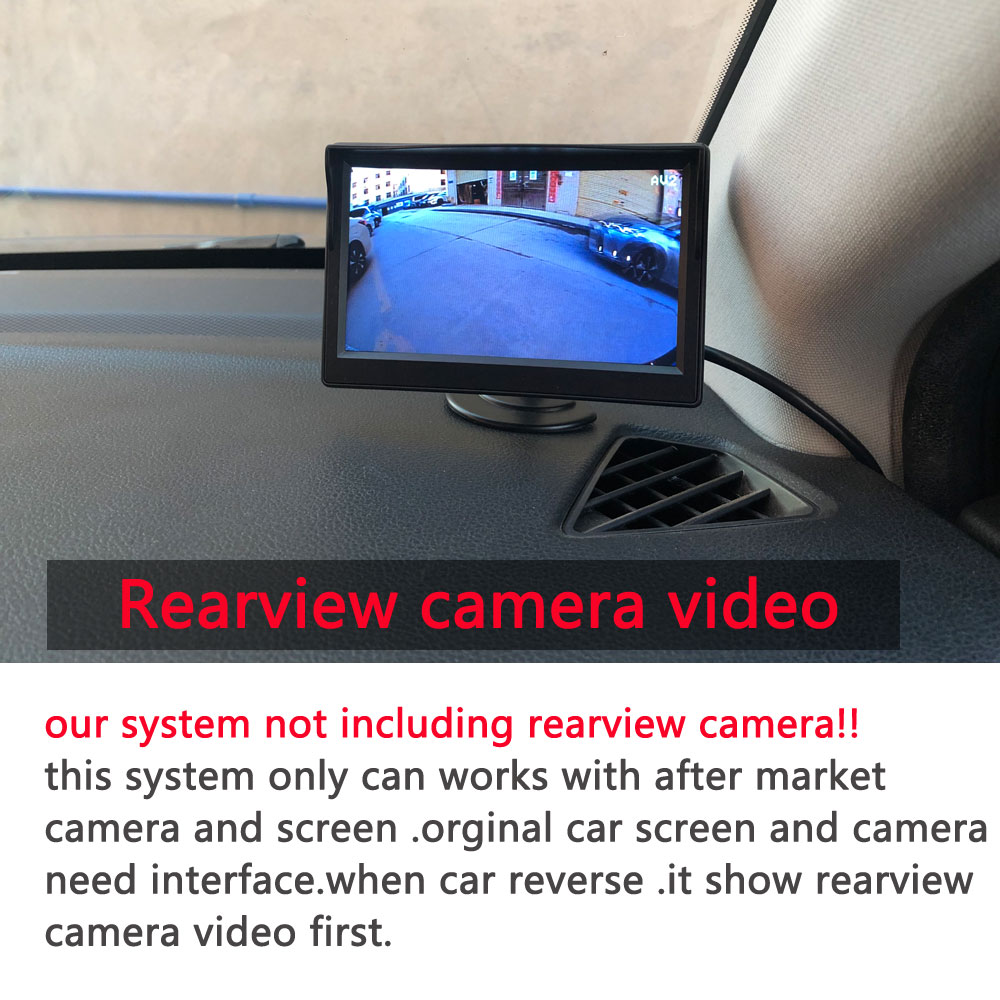

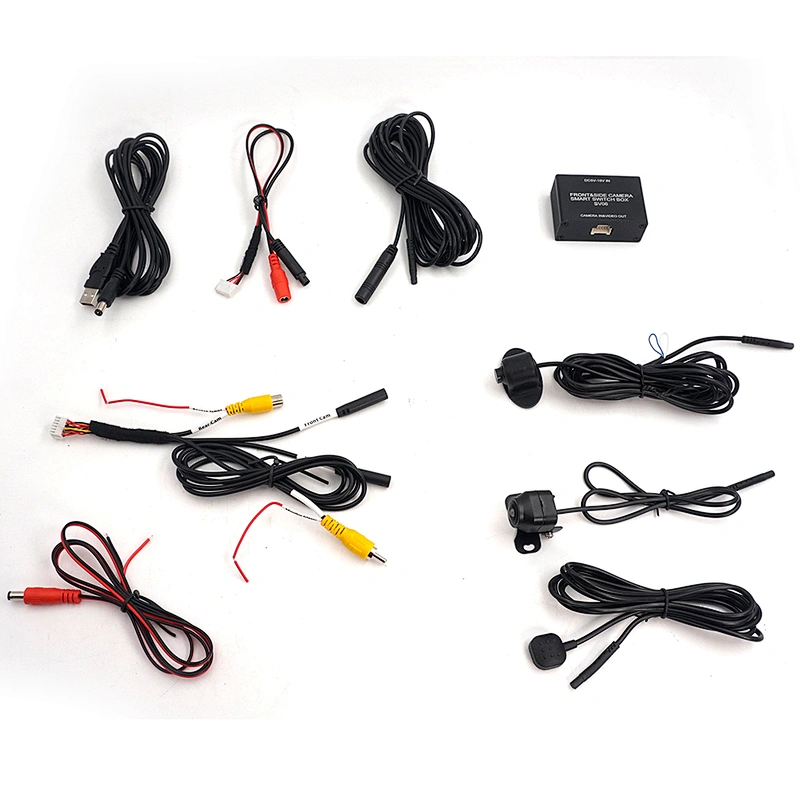

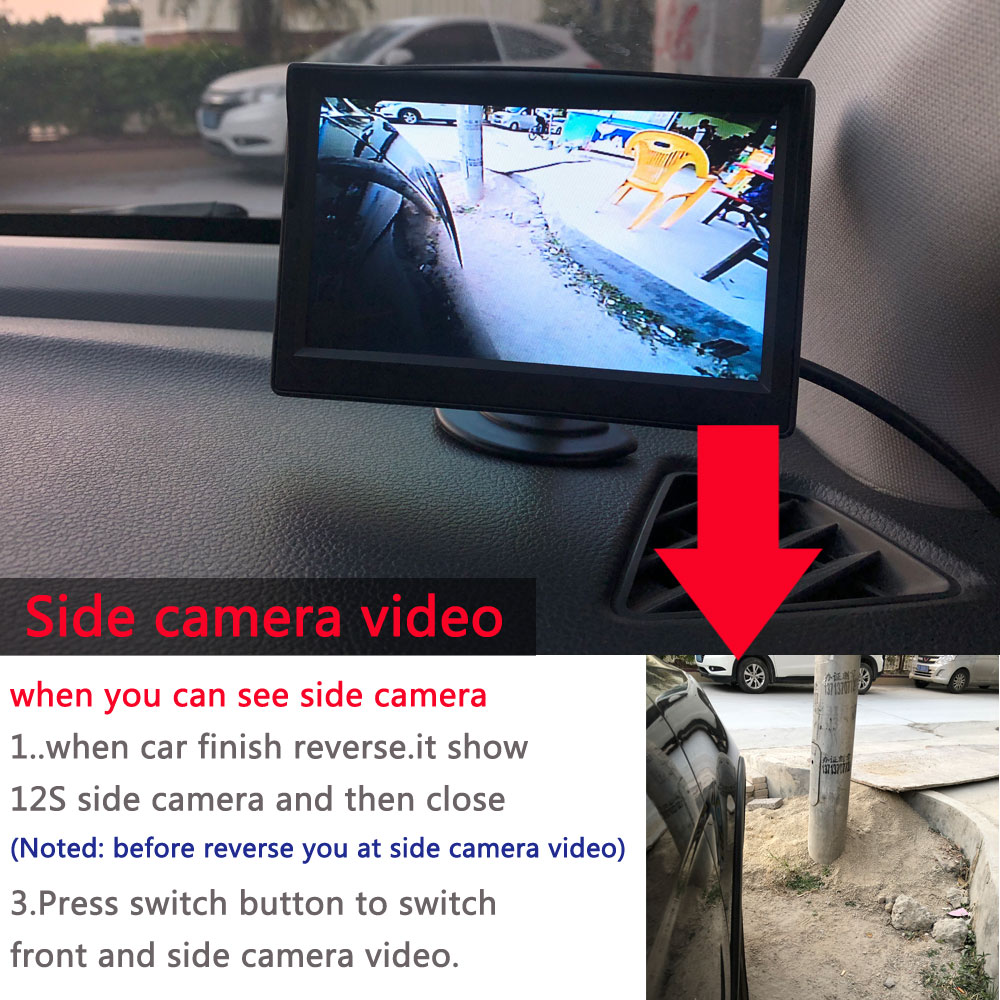

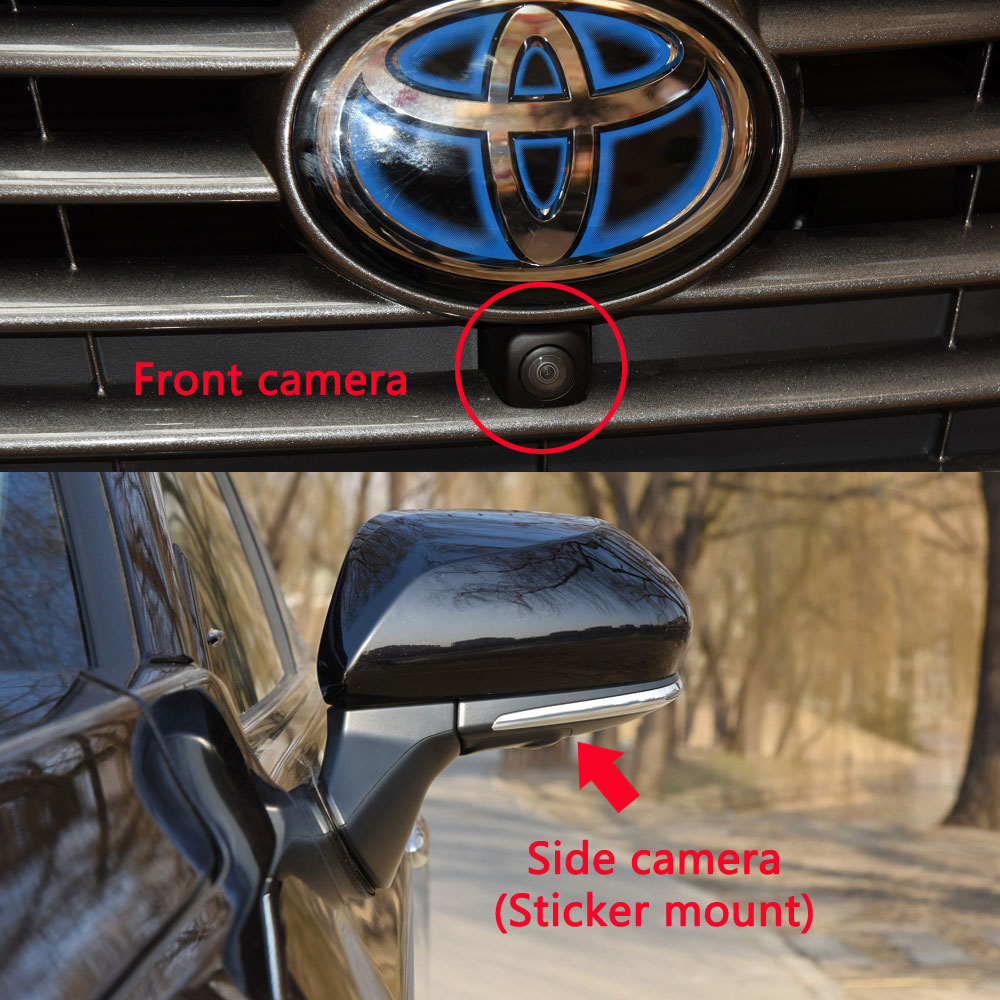

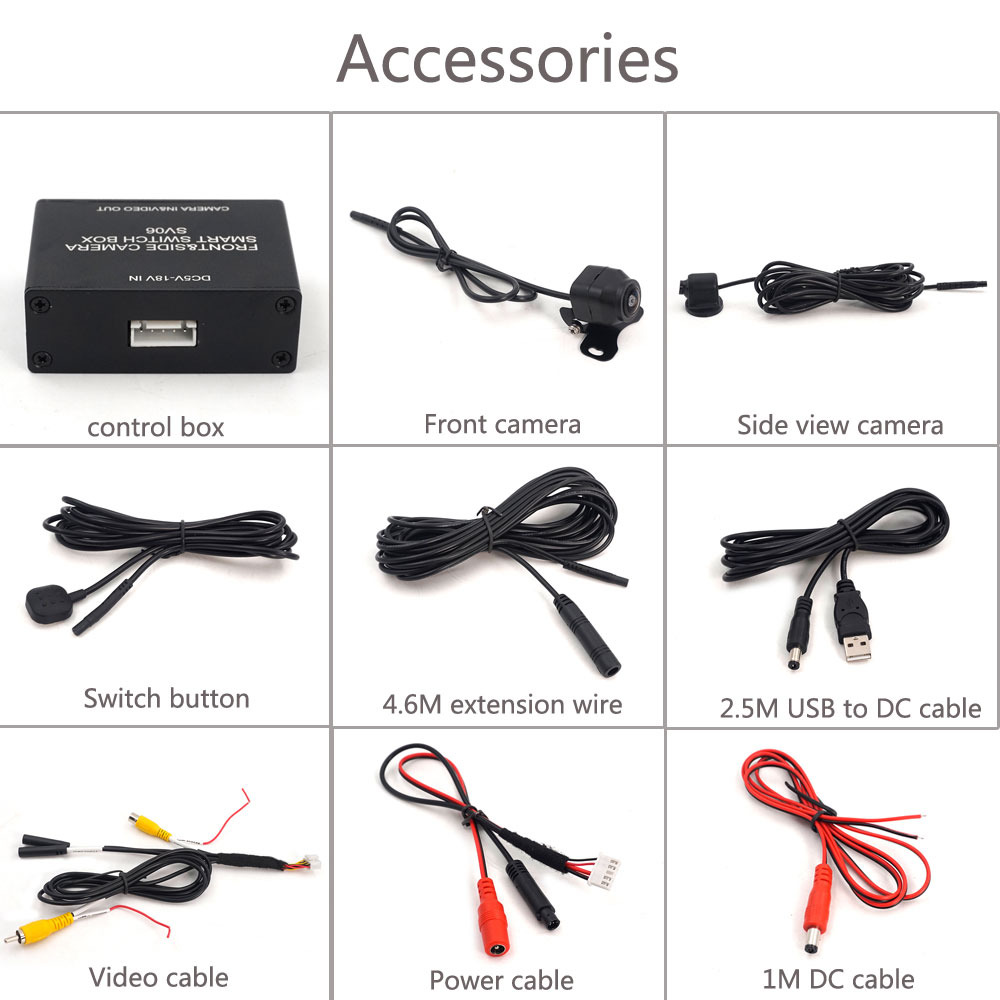

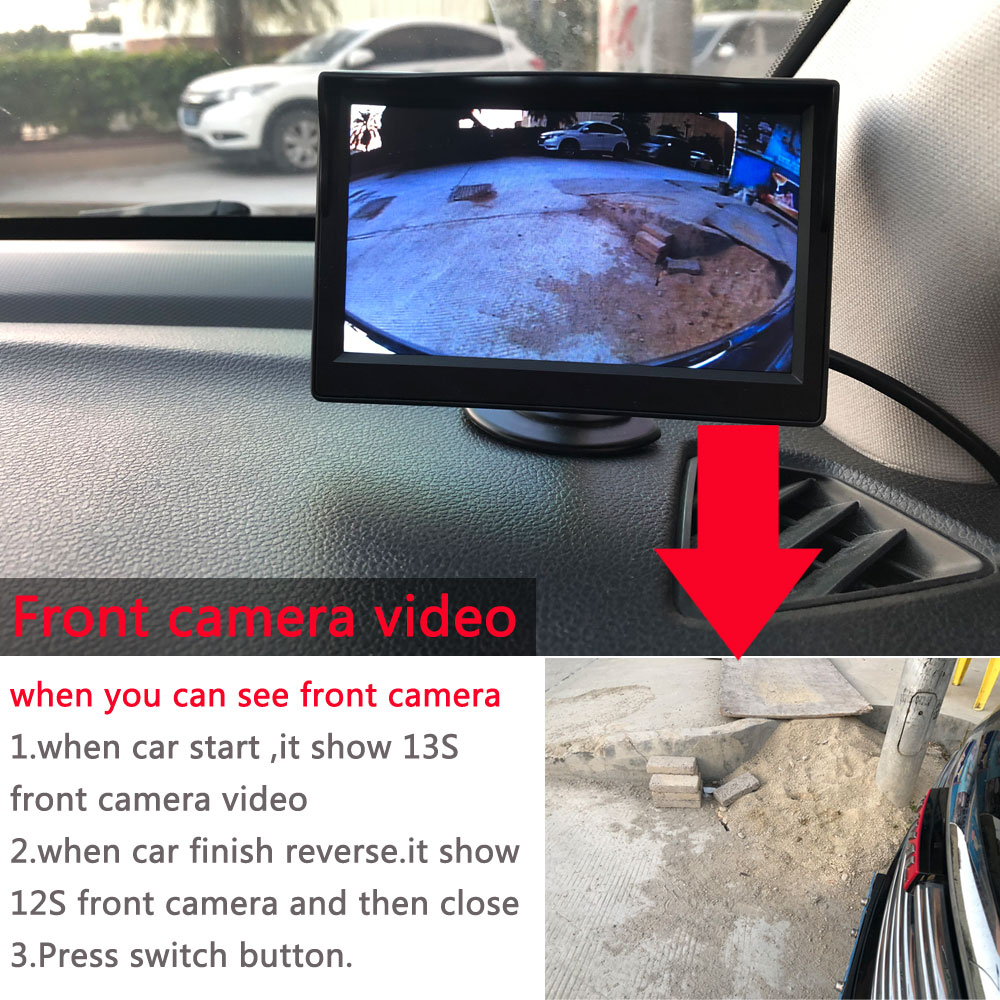

This system coming with a control box with 1pcs front camera and 1pcs side cameraSimple install:Support USB 5V power supply or DC12V power supply,Camera power supply by control boxNote:For car monitor with reverse trigger need connect with DC12V power supplyFor car monitor without reverse trigger wire .connect with USB 5V power supply1. When the car starts: automatically show front camera video on displays 13 seconds.and then close2. When the car is reversing: automatically show rearview camera video on display ,after finish reverse .display front camera video 13 seconds 3. Press switch button to switch front camera and side camera video.keep press 2 second to turn off system.Product parameters:Working voltage: DC5V-18V Working current: <45mAWorking temperature: -10 ° C - 70 ° CRelative humidity: ≤95%Camera chips:PC4089Horizontal angle of camera:150degree front camera/90degree side cameraCamera waterproof rate:IP68Nightvision camera
Details Images
