- Type:wireless monitor, wireless monitor with camera
- Placement:Dashboard
- OS:Others
- Screen Type:LCD
- Resolution:800*480
- Function:A/V
- Combination:A/V input
- Connection:RCA/4PIN
- Warranty:12 Months
- Place of Origin:Guangdong, China
- Brand Name:carsanbo or your logo
- Model Number:TS7W
- Display Screen:7.0 inch
- Display Resolution:800*480
- Power supply:DC12-32V
- Camera Horizontal angle:More than 15m
- Camera water proof:IP 69
- Video Frequency:PAL/NTSC
- Camera Resolution:700TVL
- Waterproof IP Rate:IP69
- Transmit power:20dBm

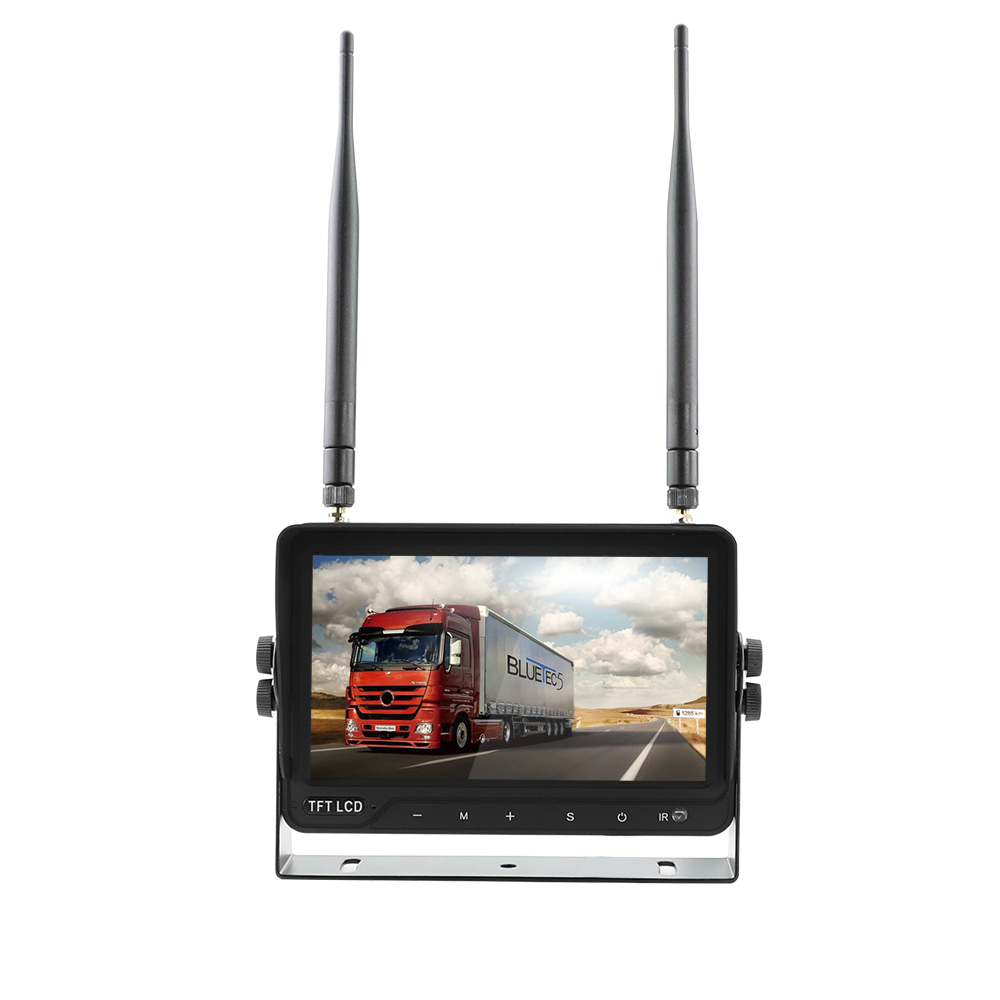

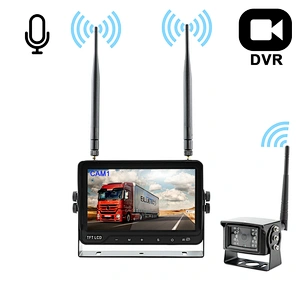

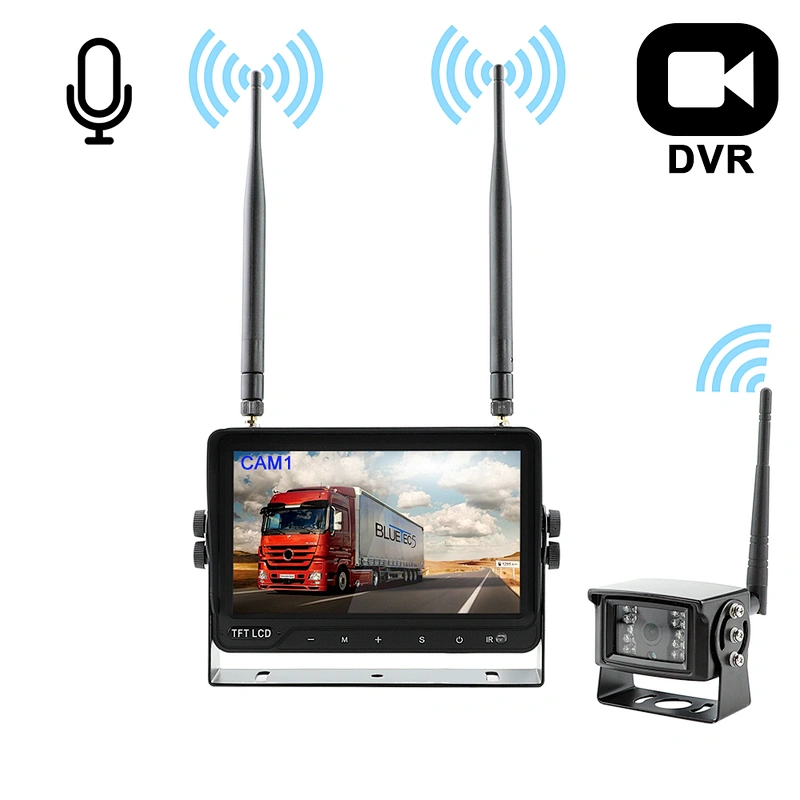

7 inch wireless monitor with 1pcs wireless digital camera
| PRODUCT INFORMATION |

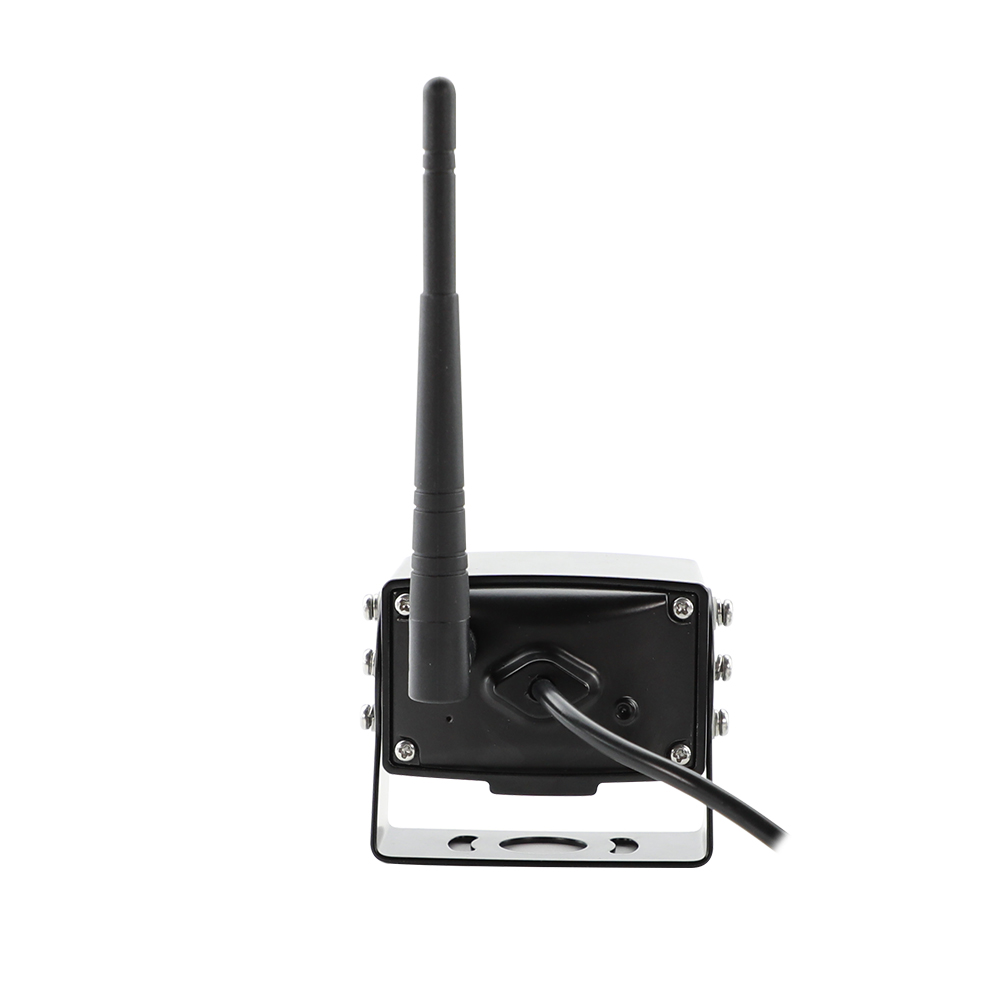

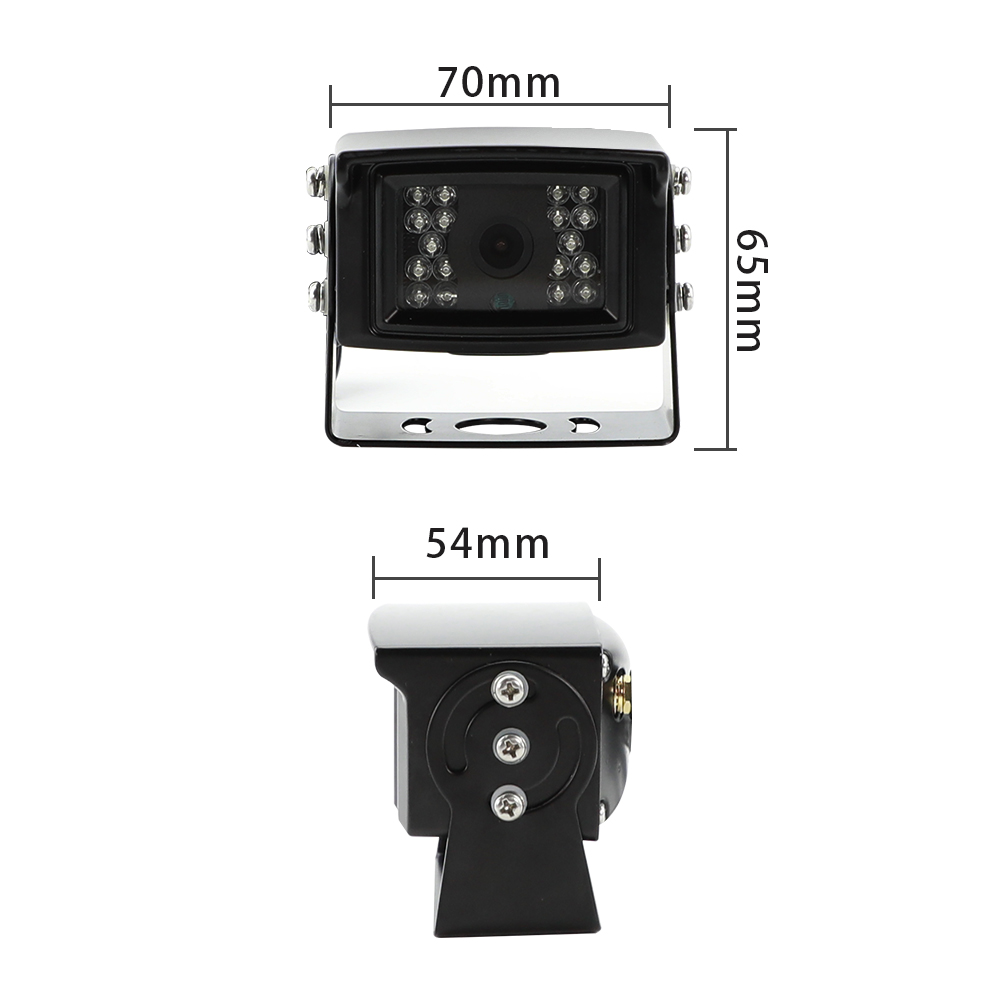

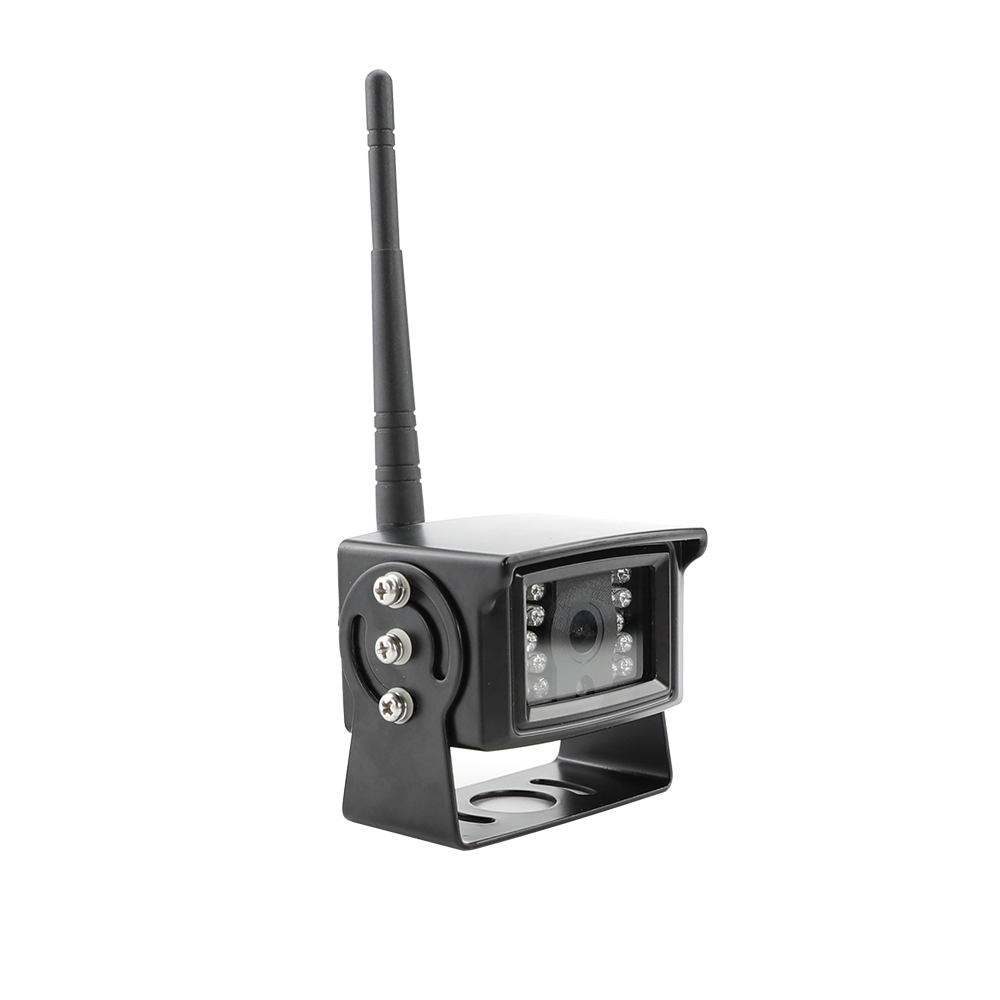

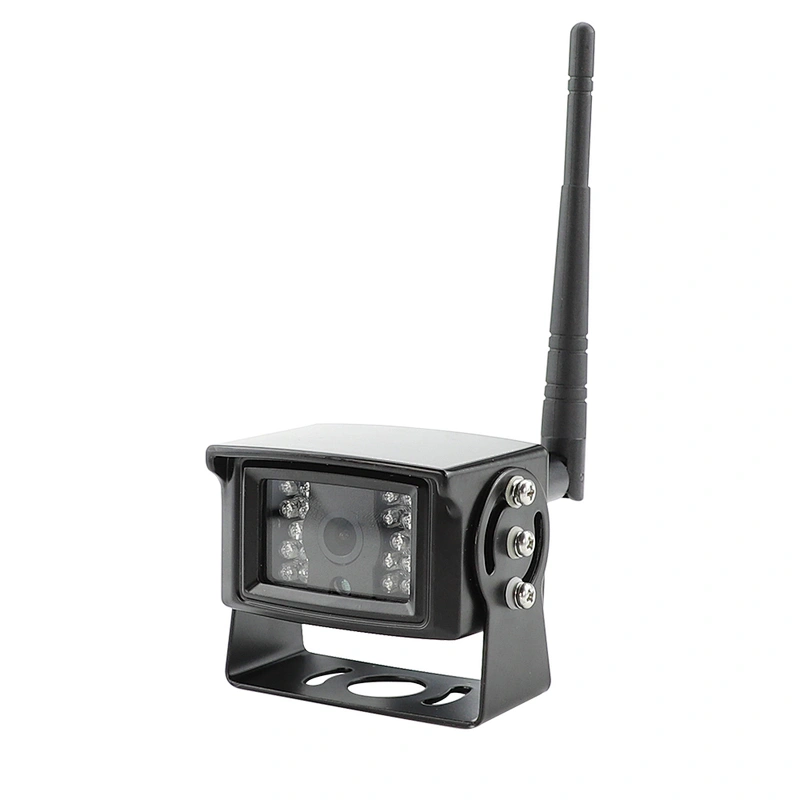

MARS wireless transmitter camera product parameters
Imaging chip: 1/3 CMOS
Launch chip: MR6790A
Operating frequency range:2400~2525MHZ
Antenna input impedance:50Ω
Transmit power: 20dBm
Transmission distance: The open distance is divided into 250M/four divided into 150M
RF transmission rate: 4Mbps
Modulation:FSK/GFSK
Spread spectrum method: Frequency hopping
Total number of frequency hopping channels:125
Frequency hopping rate: 1200/S
CRC detection bits:16
Video format, pixel:NTSC:976*494
Horizontal angle:120 degrees
Resolution:700TVL
Night vision distance: More than 15m
Features:Shockproof, night vision 18 LED infrared lights
waterproof:Ip69
Working voltage and current:DC10V(180MA)-32V(100MA)
working environment: -20℃ ---70℃

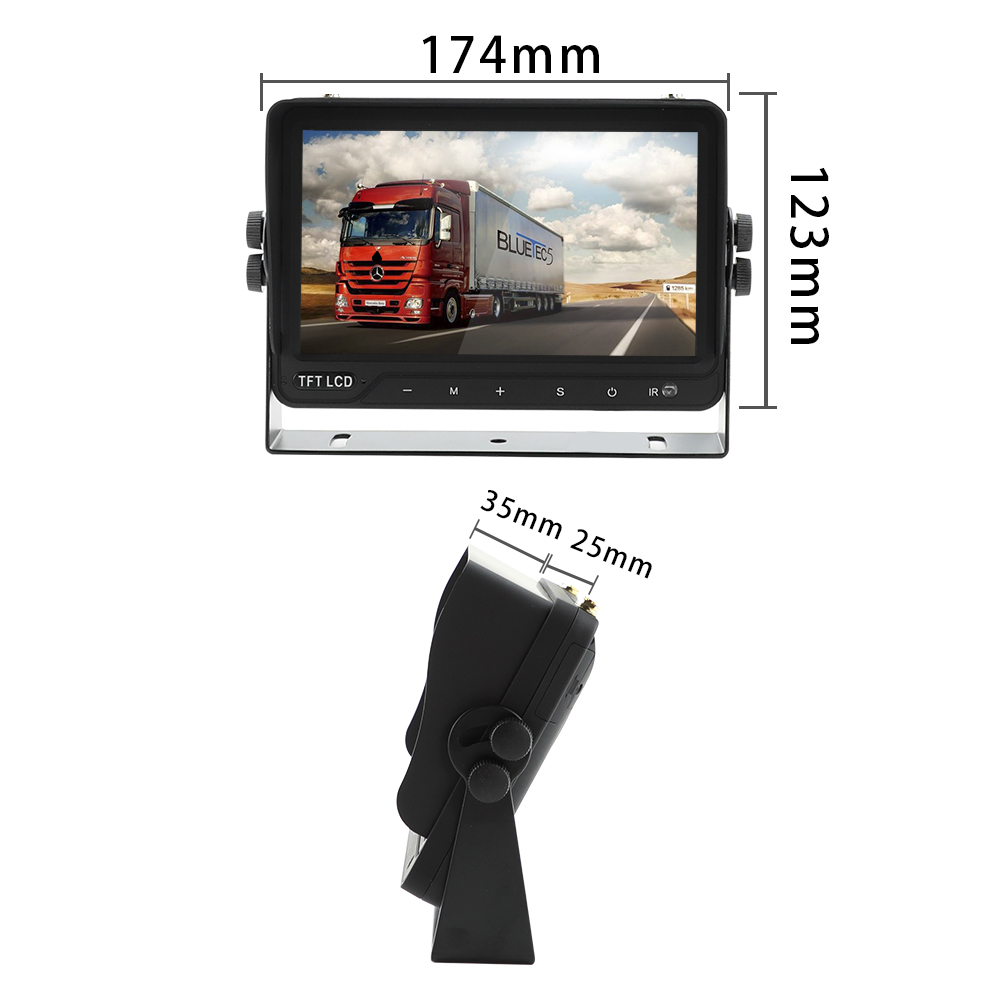

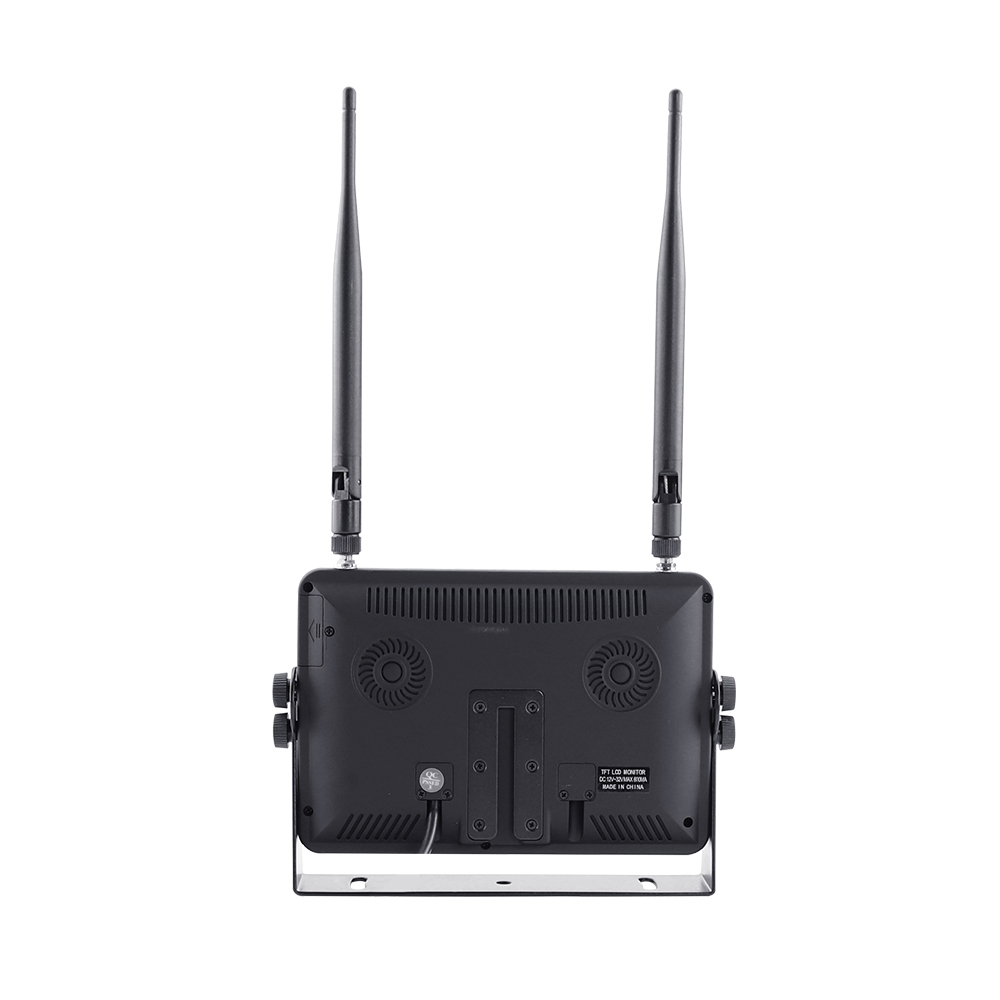

Display parameters
screen size:7 inch / 9 inch
Screen Resolution:800RGB(H)*480(V)/PAL/NTSC
Screen contrast 450cd/m/500:1
Working voltage and current:DC10V(420MA)~32V(150MA)
Operating temperature: –20℃~+70℃
Receiving chip: MR6780A
Operating frequency range:2400~2525MHZ
Antenna input impedance:50Ω
Receiving sensitivity: 88dBm@4MHZ
Transmission distance: The open distance is divided into 250M/four divided into 150M
Menu display: Multi-language menu, graphic operation menu is quick and convenient
Image storage format: AVI format
Support card memory: Maximum support SD card 128G
Image split display: Single-screen/dual-screen/four-screen quick setting (12 split modes)
Burn and playback: Can record 4 channel input (record current channel), independent file package storage for each channel of the recorded file and independent playback of each channel
Audio: It can receive and play sound in real time, or replay sound after burning
Operation mode:11-key remote operation/panel button operation

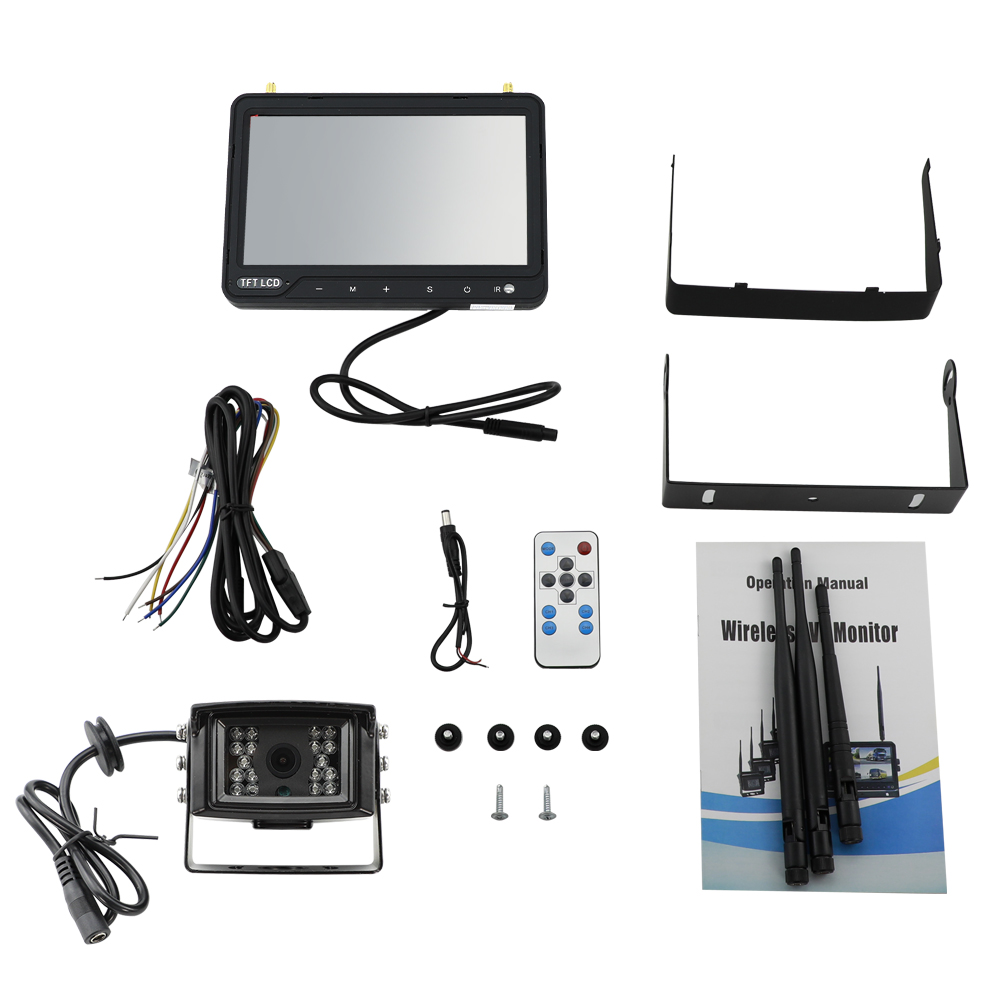

| PRODUCT DISPLAY |

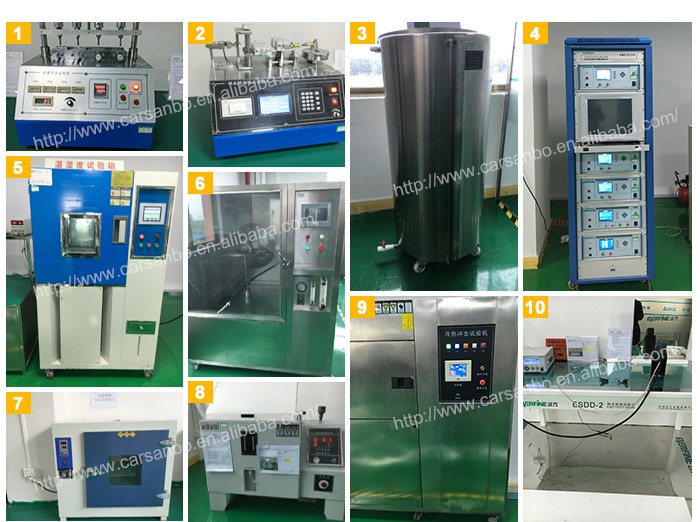

| PROFESSIONAL EQUIPMENT |
| 1.Button life tester 2.Microcomputer plug test machine 3.Hydrapress measurement 4.Automotive immunity test system 5.Temperature and humidity test chamber | 6.Box rain test chamber 7.Automatism constant temperature Oven 8.Salt Spray Tset Chamber 9.Thermal shock test machine 10.Electrostatic discharge test bench |

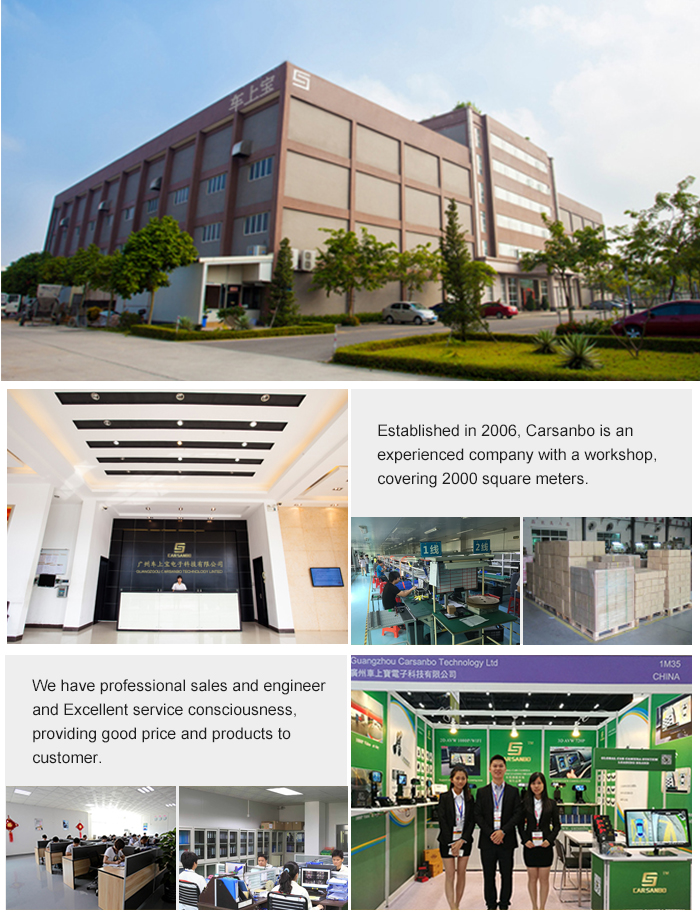

| COMPANY INFORMATION |
| CONTACT US |
| SHIPMENT & PAYMENT |
| FAQ |
Yes, Sample order available. we can also provide drop ship service.
2. What's your Trade Terms?
Ex-work Guangzhou as our standard trade terms, CIF, FOB is available.
3.what’s your warranty policy?
All of our products has one year warranty. we are supplying free spare part for customer repair if quality issue.
4.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
5. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
