Front and rearview camera switch box for cars

Front and rearview camera switch box for cars

Model NO.: SV05
Minimum order quantity: 1 piece

Quantity:

Product Description

Type:switch box
Screen Type:without screen
Screen Size:No Screen
Angle:no
Resolution:no
Function:Switch
Voltage:DC12V
Working Temperature Range:-25 - 50 ℃
Warranty:12 Months
Place of Origin:Guangdong, China
Brand Name:carsanbo or your logo
Model Number:SV05
Product name:Front and rearview camera switch box for cars
Certificate:CE FCC Rohs
Power supply:DC12V
Working priority:Back View>Front View
Automatical front view when starting:Yes
Certification:ce

Recommend Products

Products Description

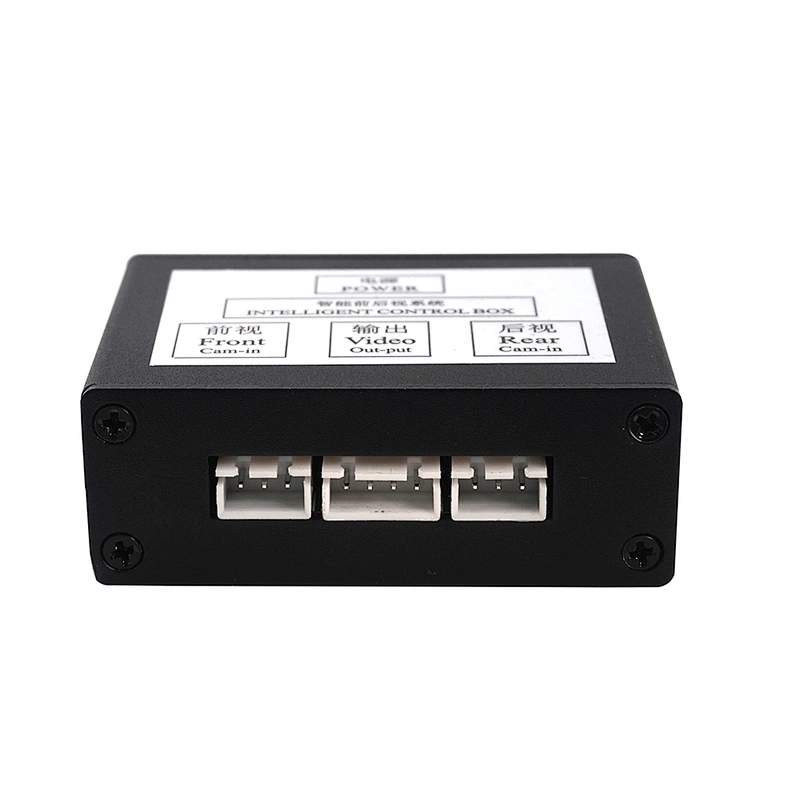

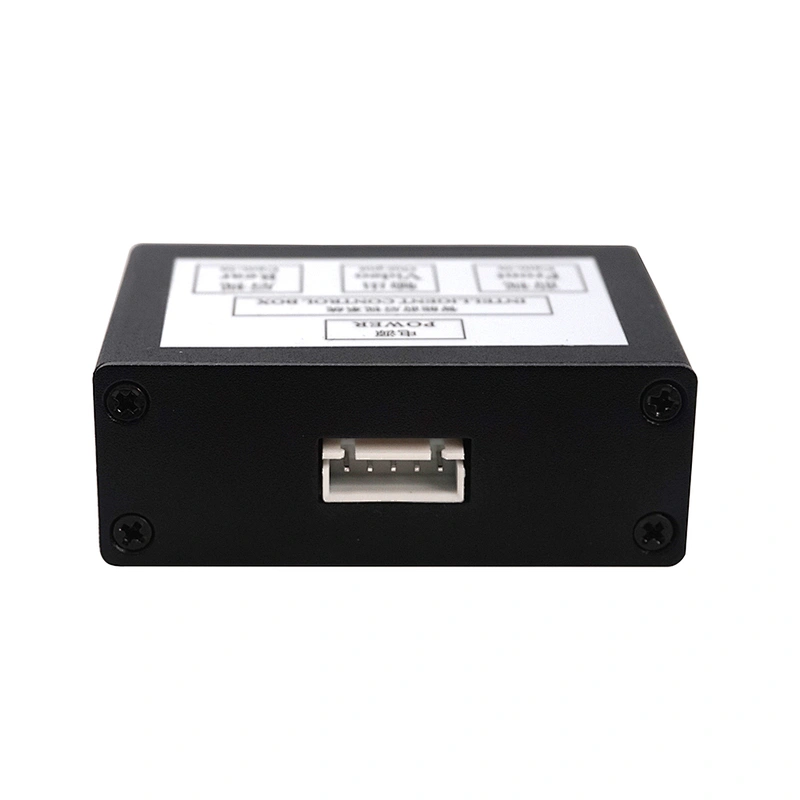

Front and rearview camera switch box for cars

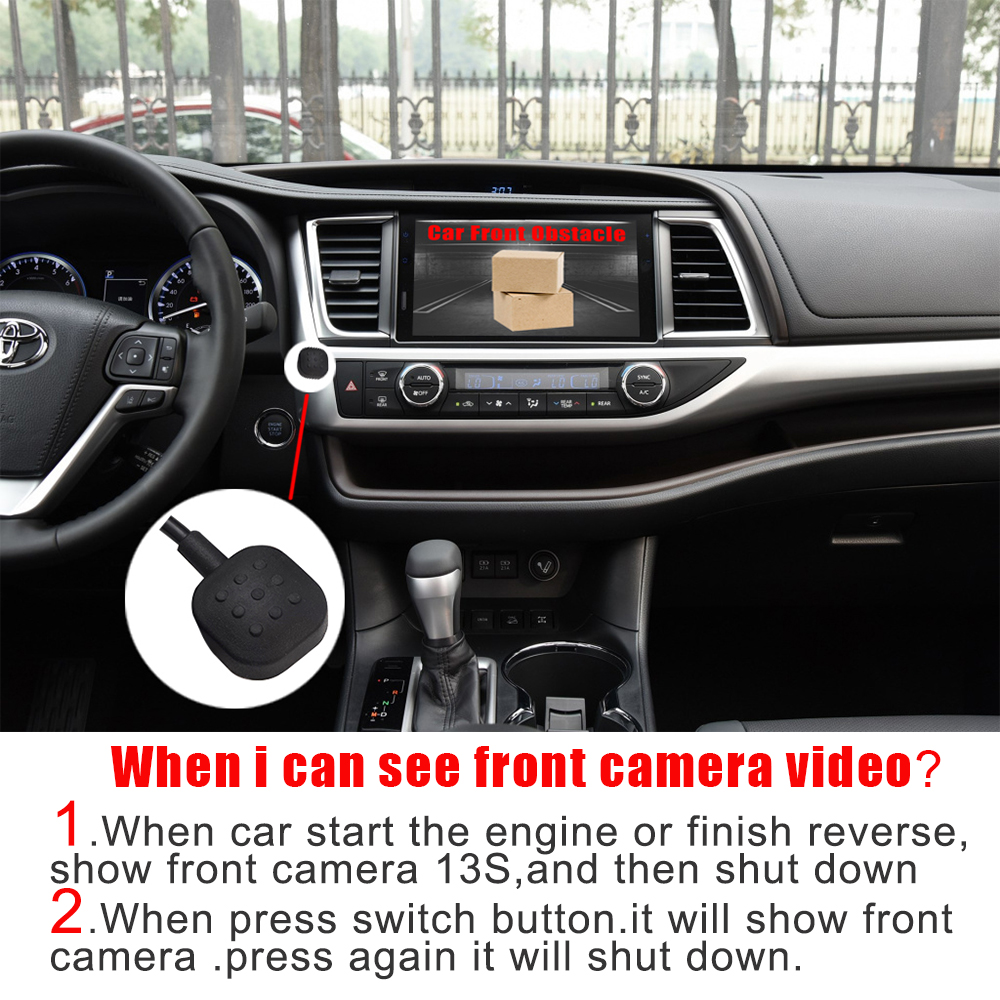

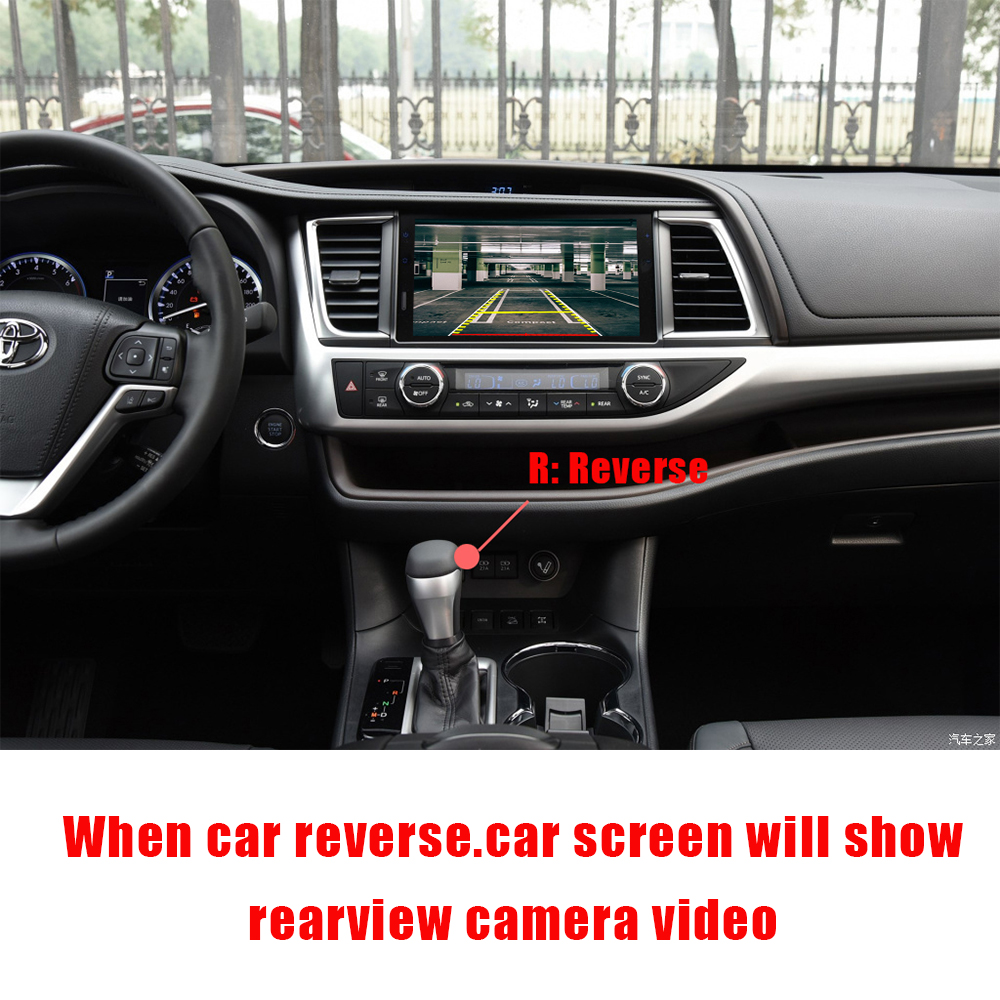

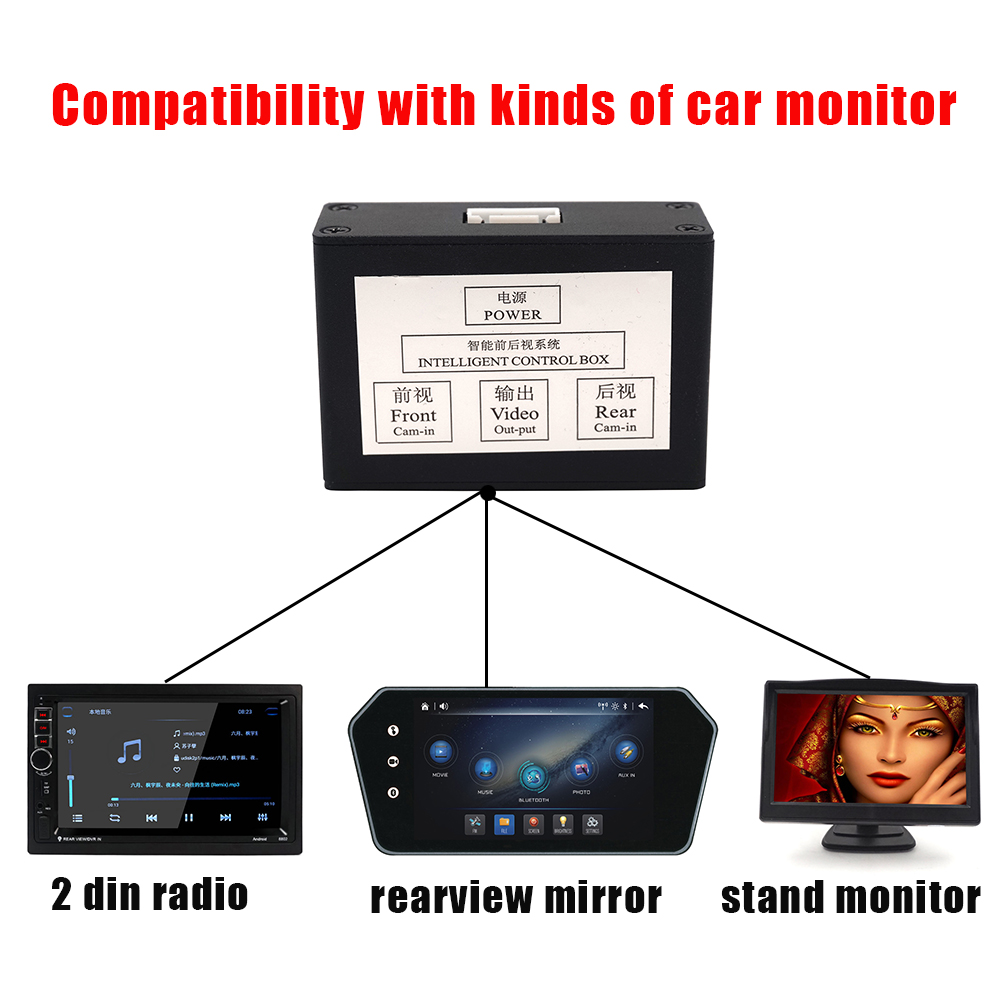

Working voltage: 9-16VWorking current: <10mAWorking temperature: -10 ° C - 70 ° CRelative humidity: ≤95%Voltage output: DC12VApplication scenarioAs long as there is a display on the car (such as Android navigation, rearview mirror display, etc., the car's factory screen needs to be decoded, you need to add car video interface before you can use it), it coming with a reversing camera normally.Our system an be used together with car monitor and camera, the ordinary display has only one reversing camera signal input, you will have extra front view camera signal input after adding our switch box, and it will no effect the original display1. When the car starts: automatically open the camera in front of the car, the screen displays the front camera video, the display time is 8 seconds, it is convenient for the driver to see if there are obstacles in front, close after 8 seconds2. When the car is reversing: automatically open the camera behind the car, the screen displays the reversing camera screen, after the reversing is completed, automatically switch to the front view camera screen, showing the front camera for 15 seconds.3. When the car is driving at low speed, press the button that comes with the switch to display the front view camera, press the button again to close the front view camera.

Details Images
