- Type:Reverse Camera
- View Angle:90°-120°
- Function:Waterproof
- Power:130mA
- Voltage:DC 12V
- Warranty:12 Months
- Place of Origin:Guangdong, China
- Brand Name:Carsanbo
- Model Number:CAM213BCW
- Image sensor:1/4 PC7090
- TV system:PAL/NTSC optional
- Effective pixels:640*480
- Horizontal resolutions:480 TV lines
- horizontal angle:110 Degree
- Wide-angle:170 Degree
- Power supply:DC12V
- Video output:RCA connector
- Car Make:universal

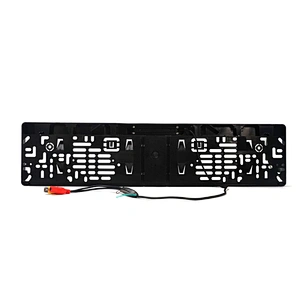

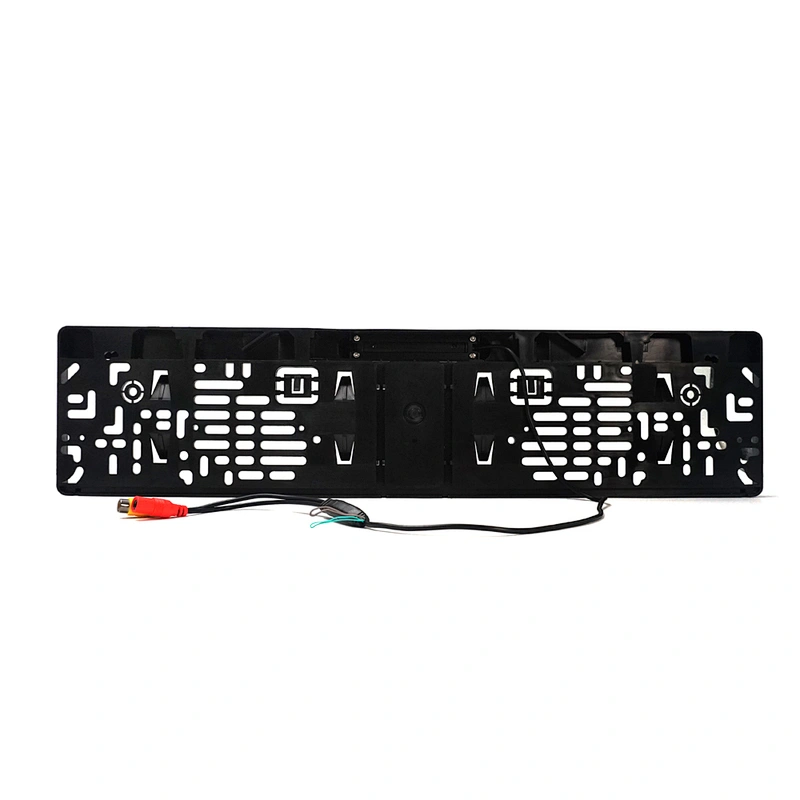

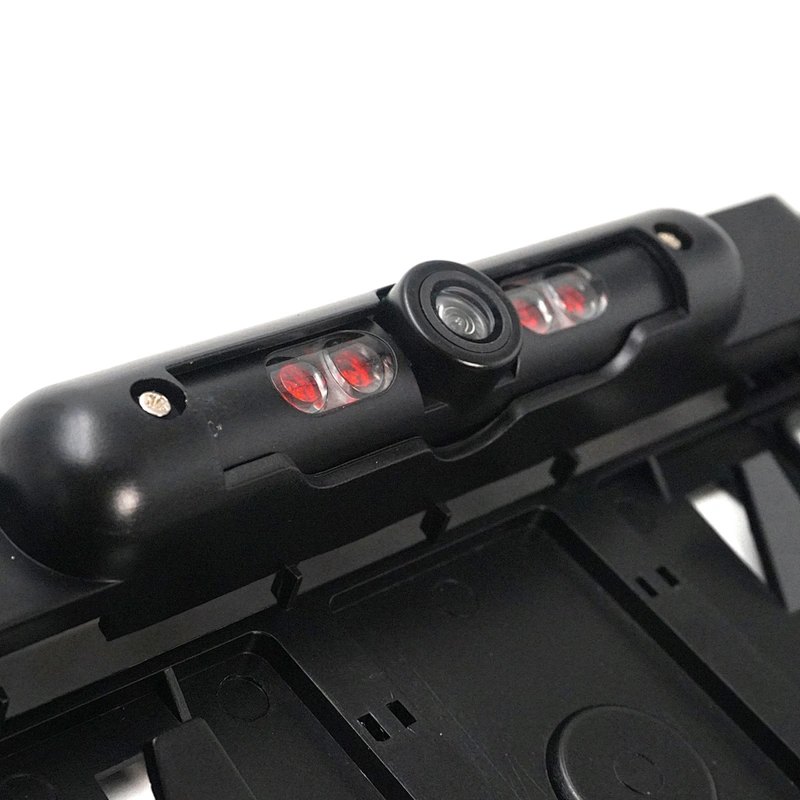

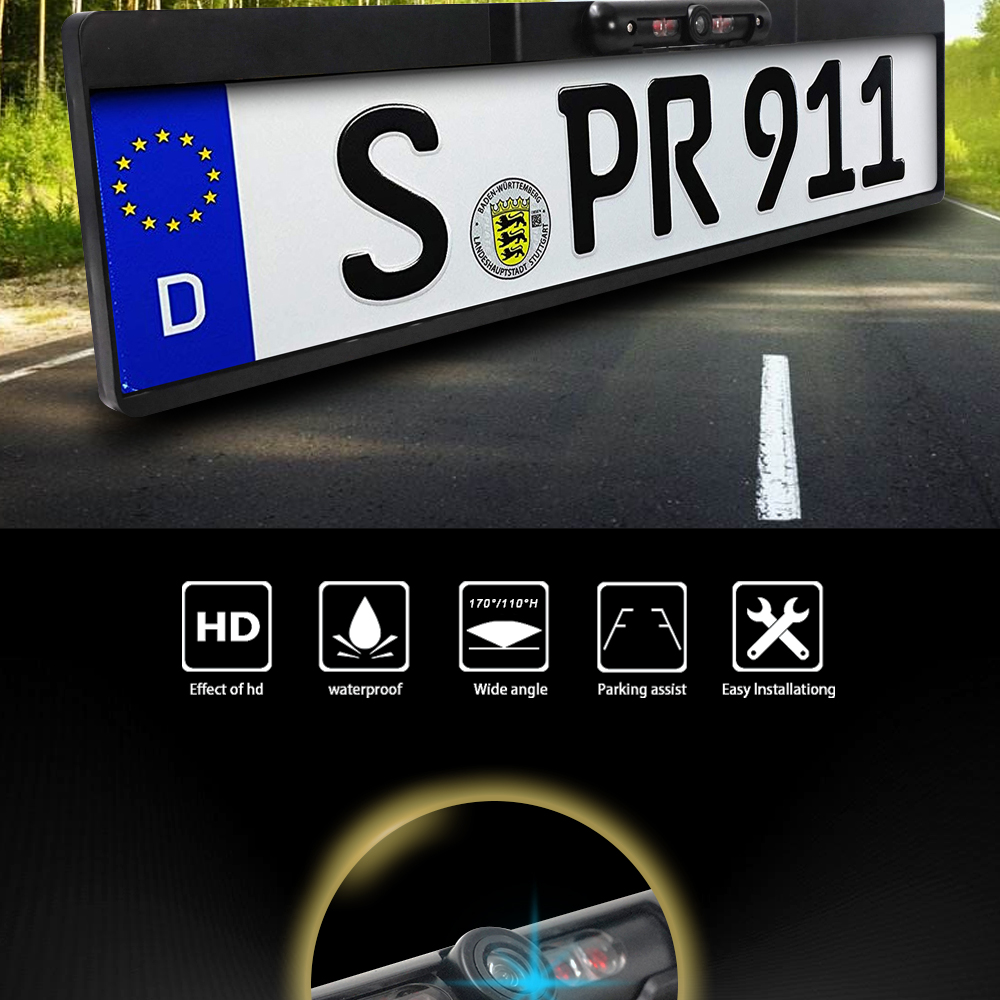

EU license plate camera IR night vision front reverse dual control car camera with 2.4G Transmitter and Receiver
| PRODUCT INFORMATION |

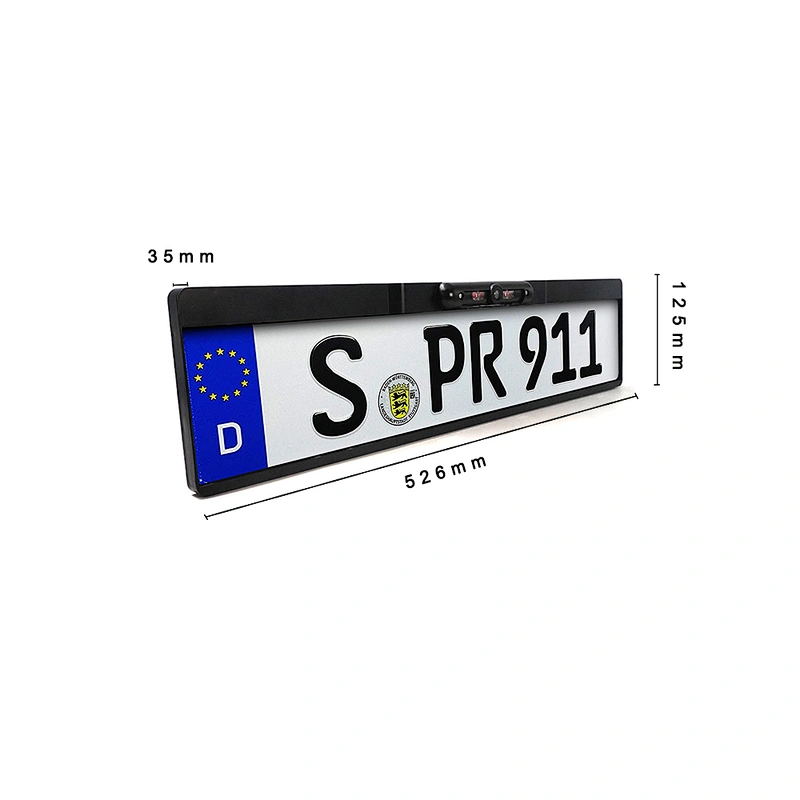

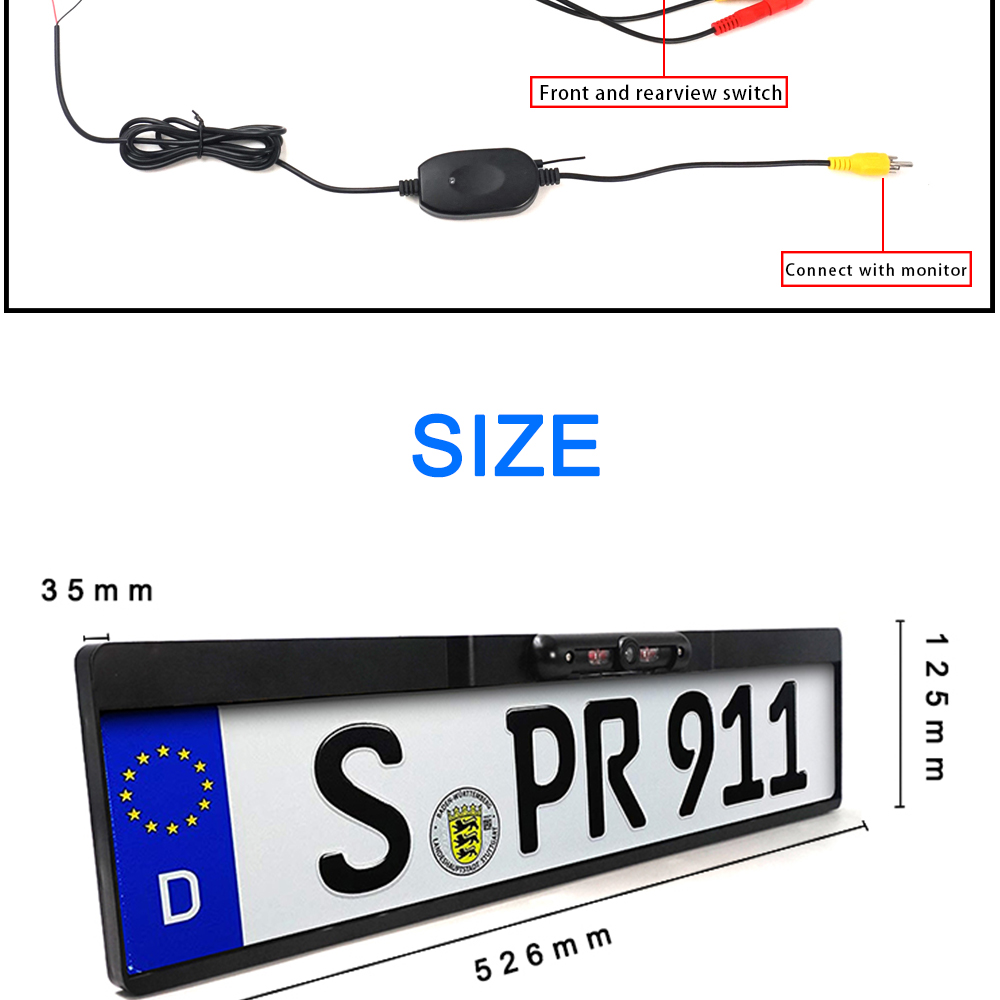

EU License Plate camera with IR/7090 chips with 2.4G wireless transmitter and receiver (Eu plate Size :545*145mm)

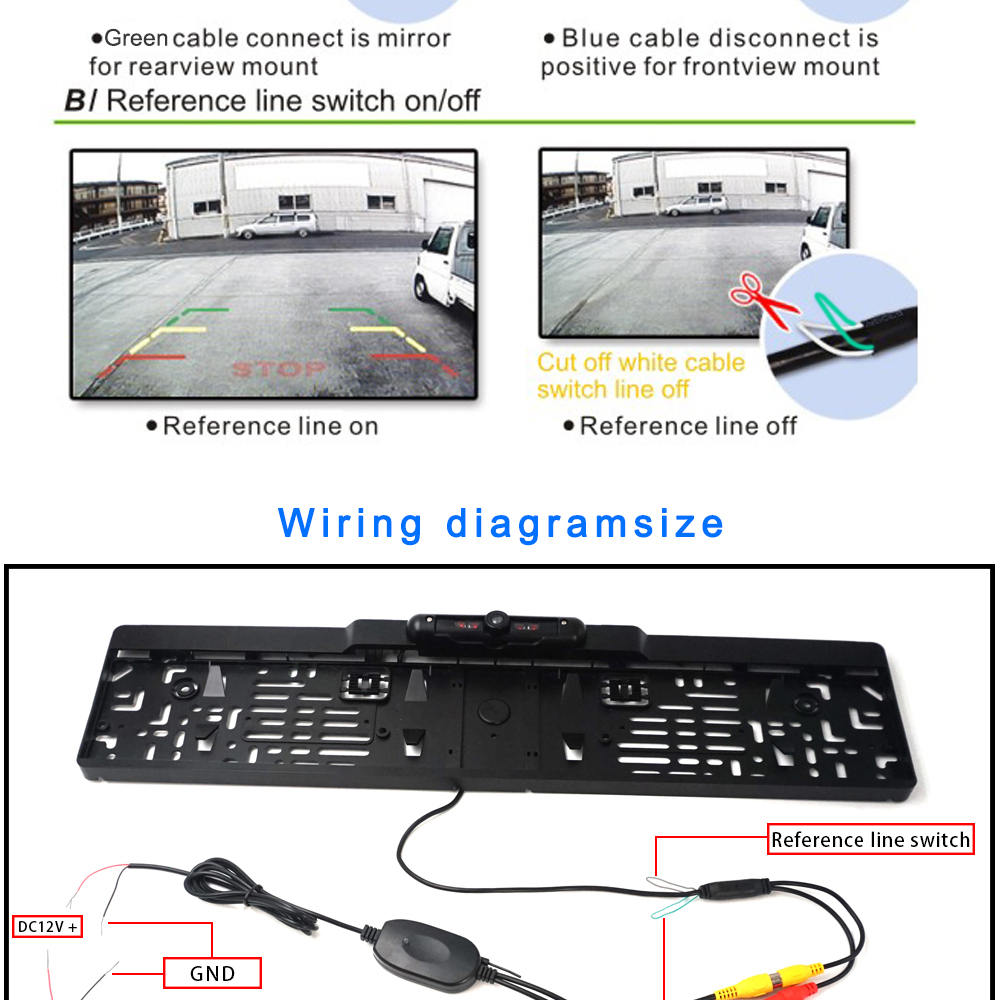

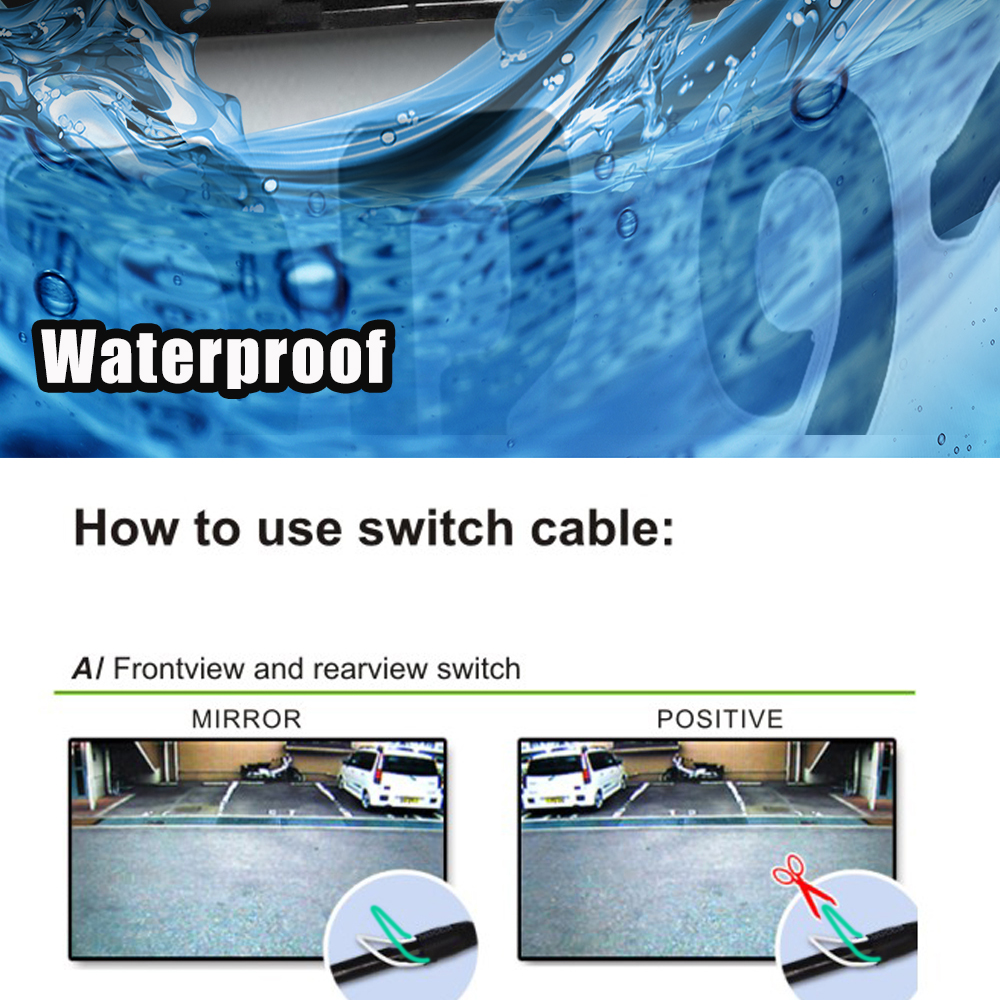

With dual switch function (Front&rearview switch,reference line switch)
Image sensor: 1/4 PC7090
TV system: PAL/NTSC optional
Effective pixels: 640*480
Horizontal resolutions: 480 TV lines

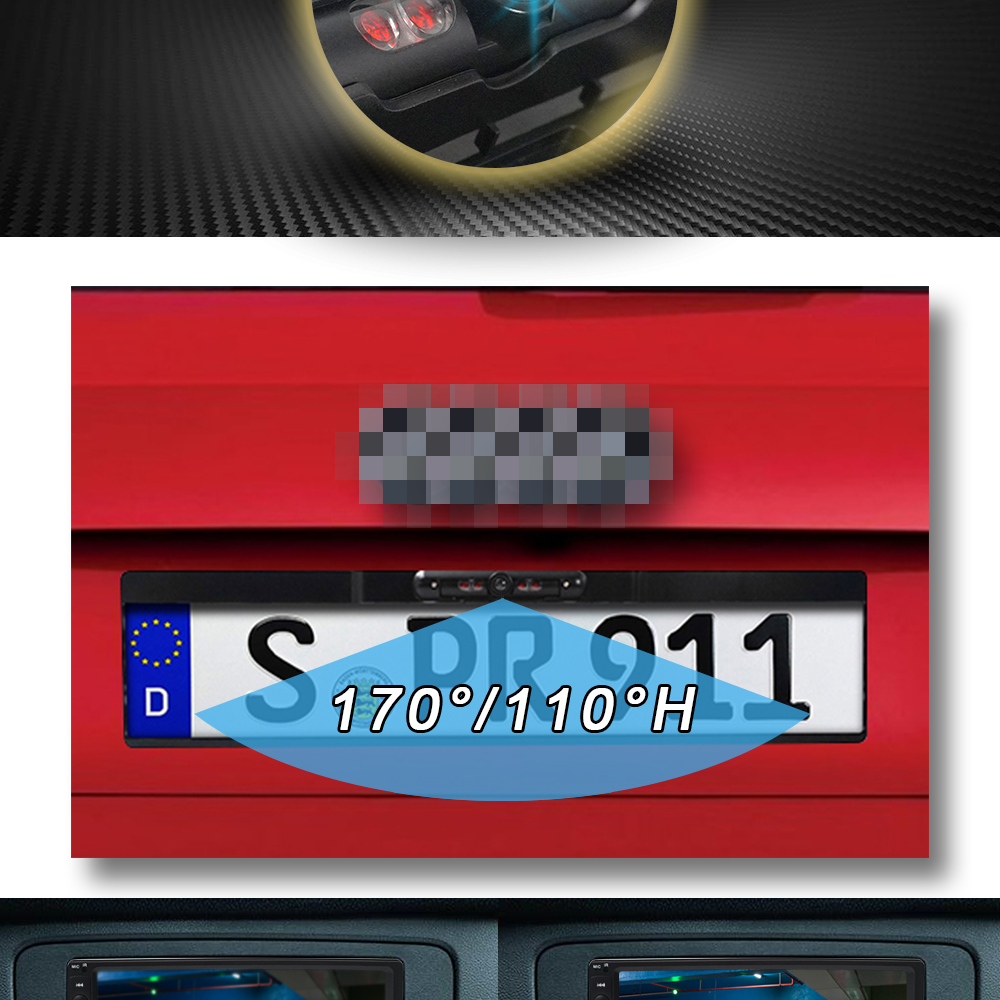

Wide-angle: 170 Degree ,horizontal angle:110 Degree
Sensing area: 3.8 mm *2.9 mm
Shutter speed: 1-1/12000
Gamma no.:0.45
Minimum illumination:0.01 Lux/F=1.2(0 Lux with IR on)
Video output: RCA connector ,Other connector optional, 1.0 VP-P,75 OHM
Power consumption: 130mA
Power supply: DC12V
Operating temperature: -20℃ - 75℃,RH 95% MAX
Storage temperature: -40°C- 80°C RH95%MAX
Waterproof rate:IP67

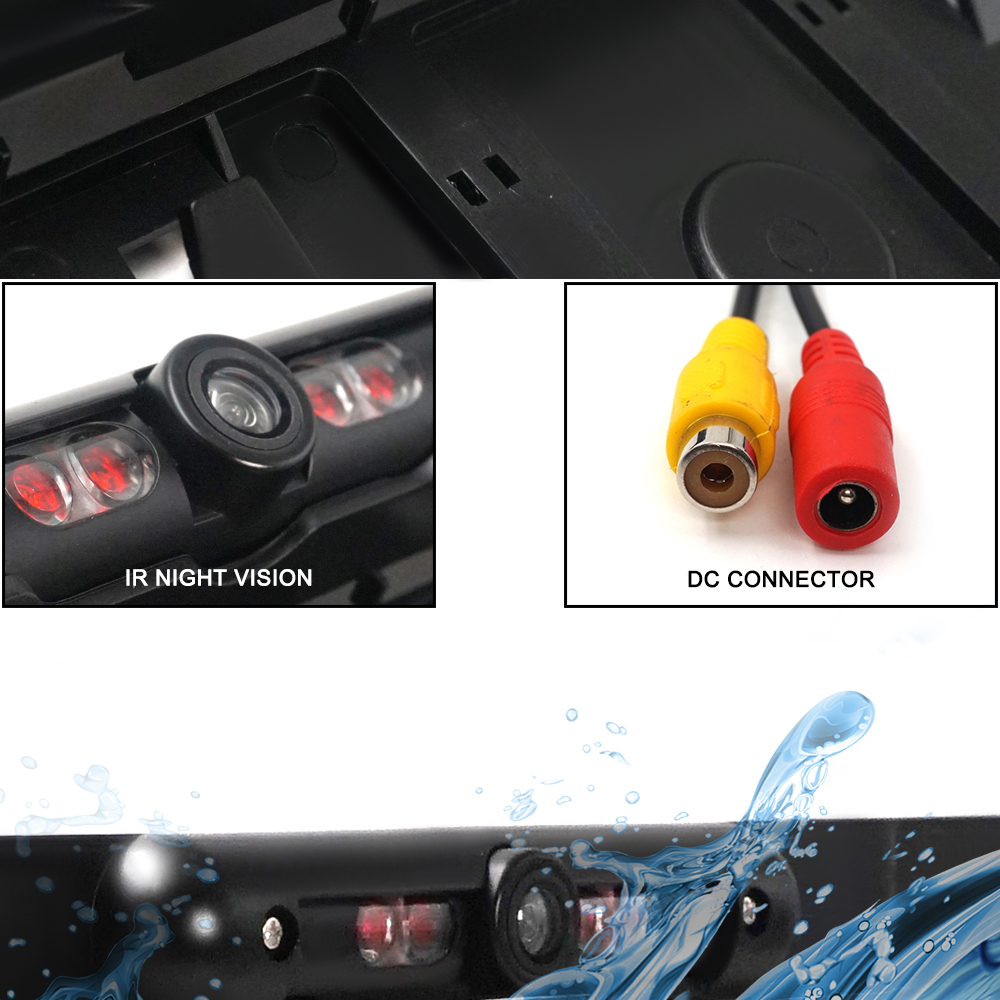

Night vision Color camera
2.4g Transmitter and Receiver:
100% brand new,High quality
Easy installation
Take one minute get your camera become a wireless camera

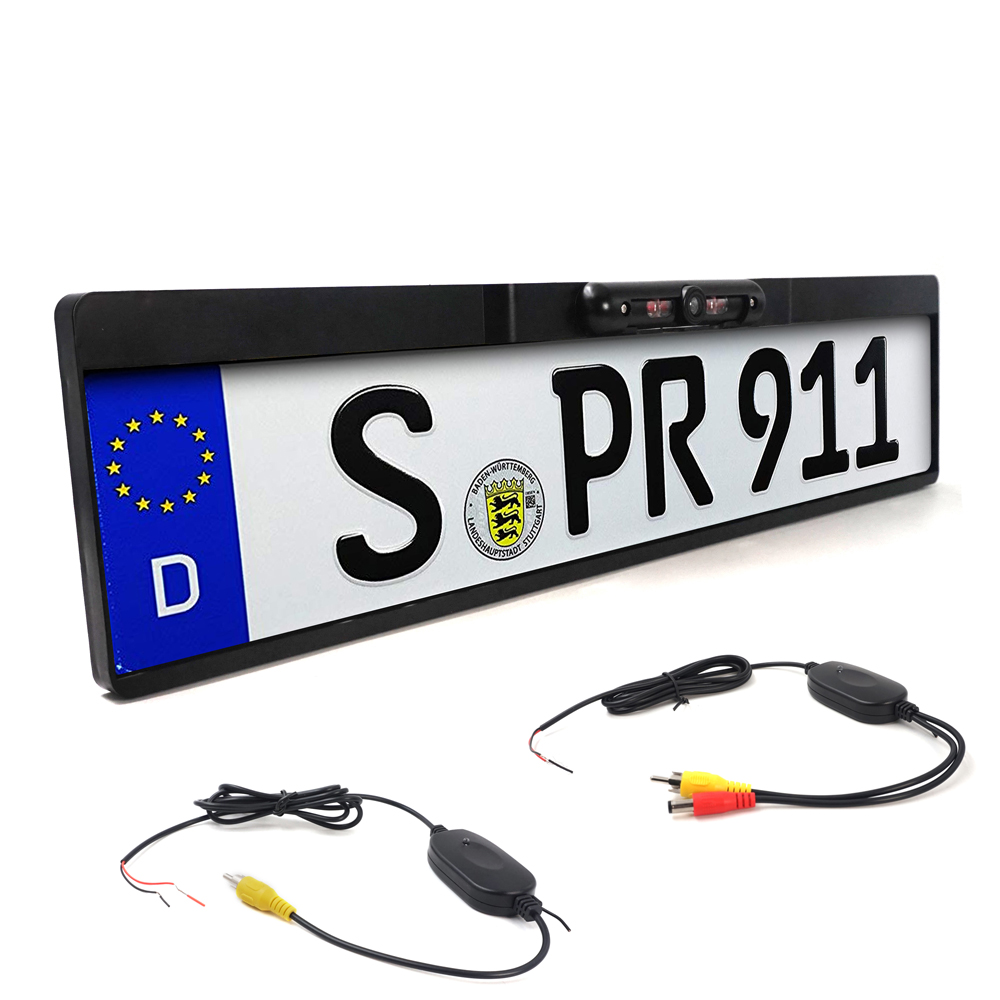

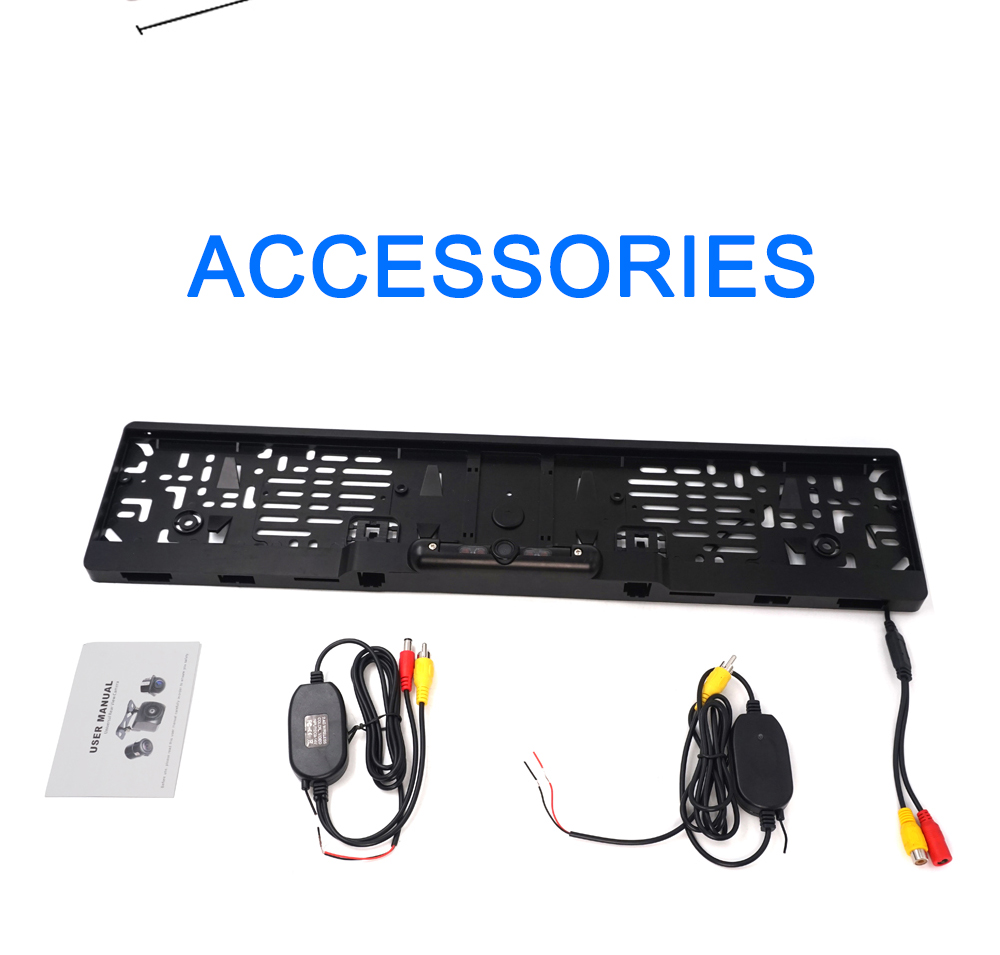

Wireless 2.4GHz transmitter/receiver set (12 Volt for vehicle installation)
Work Range:Up to about 80m(Hollowness),In-car about 10M
Connects to car rearview monitor with RCA input connector
Power: DC 12V
Transmitter/Receiver Cable Length:1.5m

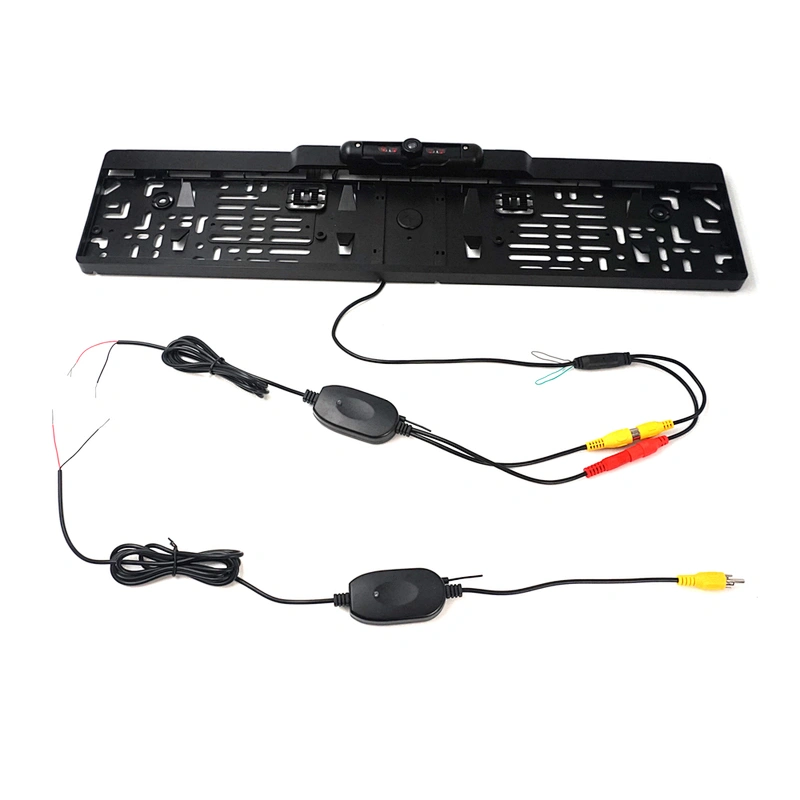

Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.
Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.
The transmitter also includes a handy pass through for the power so you can connect it inline with your camera.
Wireless transmitter with male phono plug and male DC power plug for supplying power to the camera.
Wireless receiver with male phono plug for connection to monitor.
| PRODUCT DISPLAY |
| PROFESSIONAL EQUIPMENT |
| 1.Button life tester 2.Microcomputer plug test machine 3.Hydrapress measurement 4.Automotive immunity test system 5.Temperature and humidity test chamber | 6.Box rain test chamber 7.Automatism constant temperature Oven 8.Salt Spray Tset Chamber 9.Thermal shock test machine 10.Electrostatic discharge test bench |
| COMPANY INFORMATION |
| SHIPMENT & PAYMENT |
| FAQ |
Yes, Sample order available. we can also provide drop ship service.
2. What's your Trade Terms?
Ex-work Guangzhou as our standard trade terms, CIF, FOB is available.
3.what’s your warranty policy?
All of our products has one year warranty. we are supplying free spare part for customer repair if quality issue.
4.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
5. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
