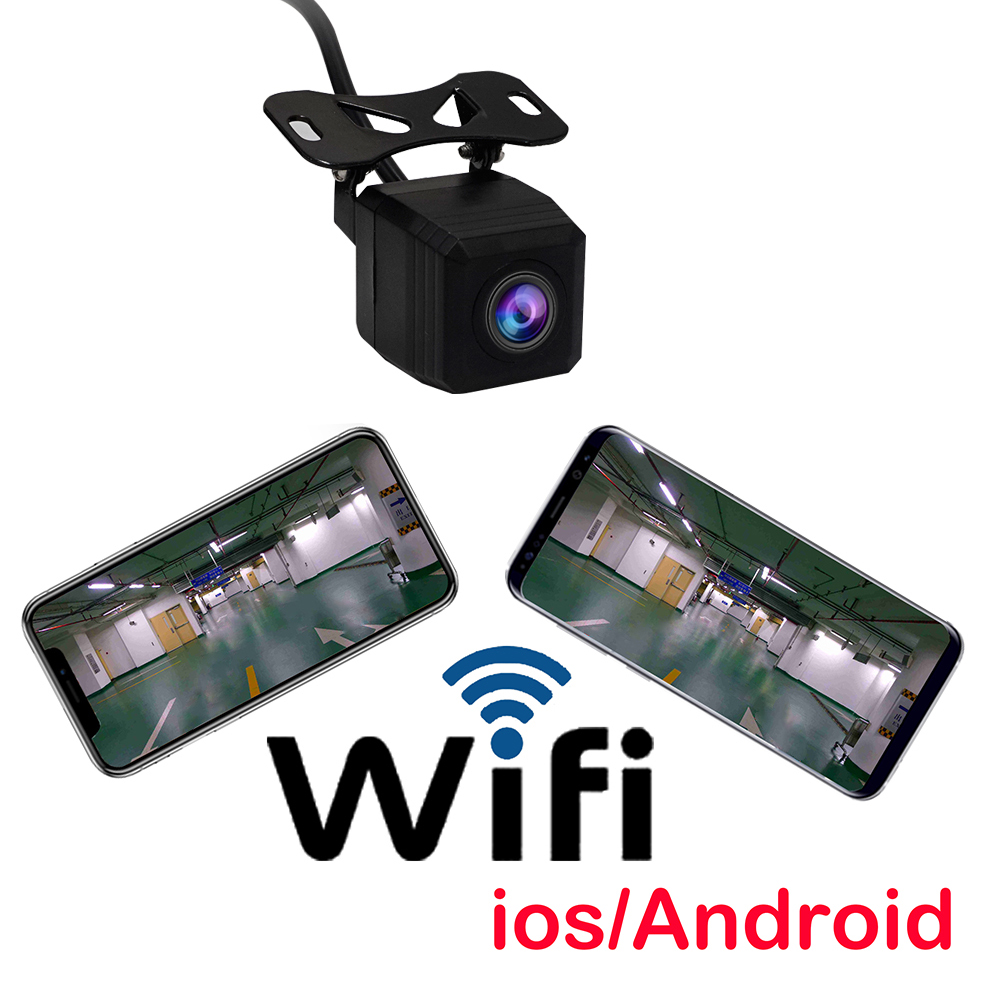

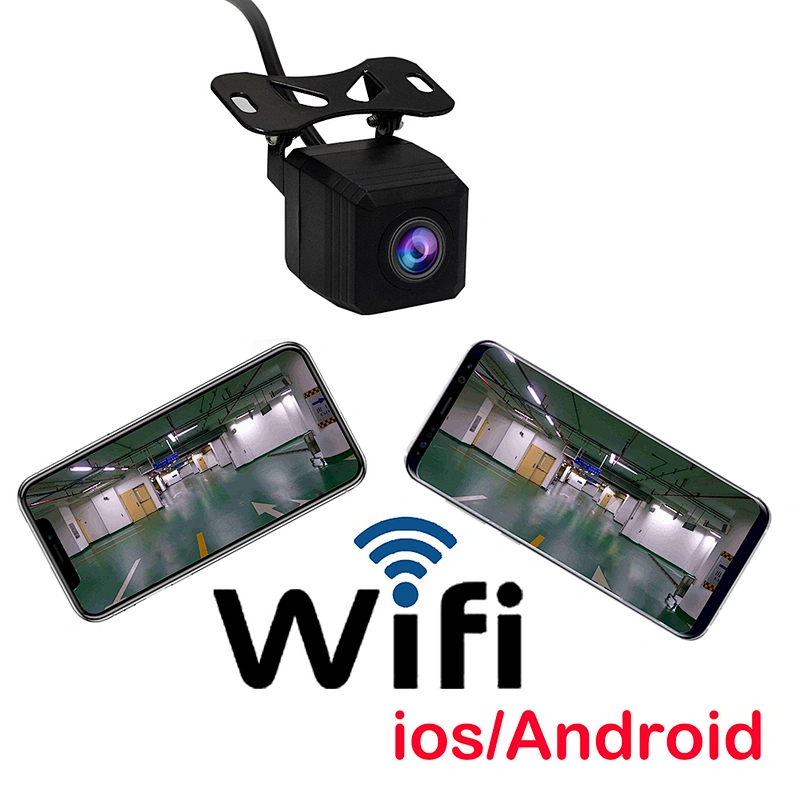

Wifi wireless car camera(Front&rear mount available)
Transmission mode:Wi-Fi digital signal
Video compression:H.264
Antenna specification:Omni directional
Transmission distance:10M In car
Working temperature:-10C~+50C/-4F~+122F
Storage temperature:-20C~+60C/-4F~+140F
Working humidity:85% RH
Sensitization chipset:OV chips
Image pixel:1280*720P
Angle of view:125~150
Minimum illumination:2.0Lu/F1.2
Transmission power:80mW
Power:DC 12V
Night vision distance:5~10M
Waterproof level:IP66
Fixed mode:hanging type
Receiver: Android 5.0 above and IOS system with Wi-Fi mode

WIFI Rearview camera manual

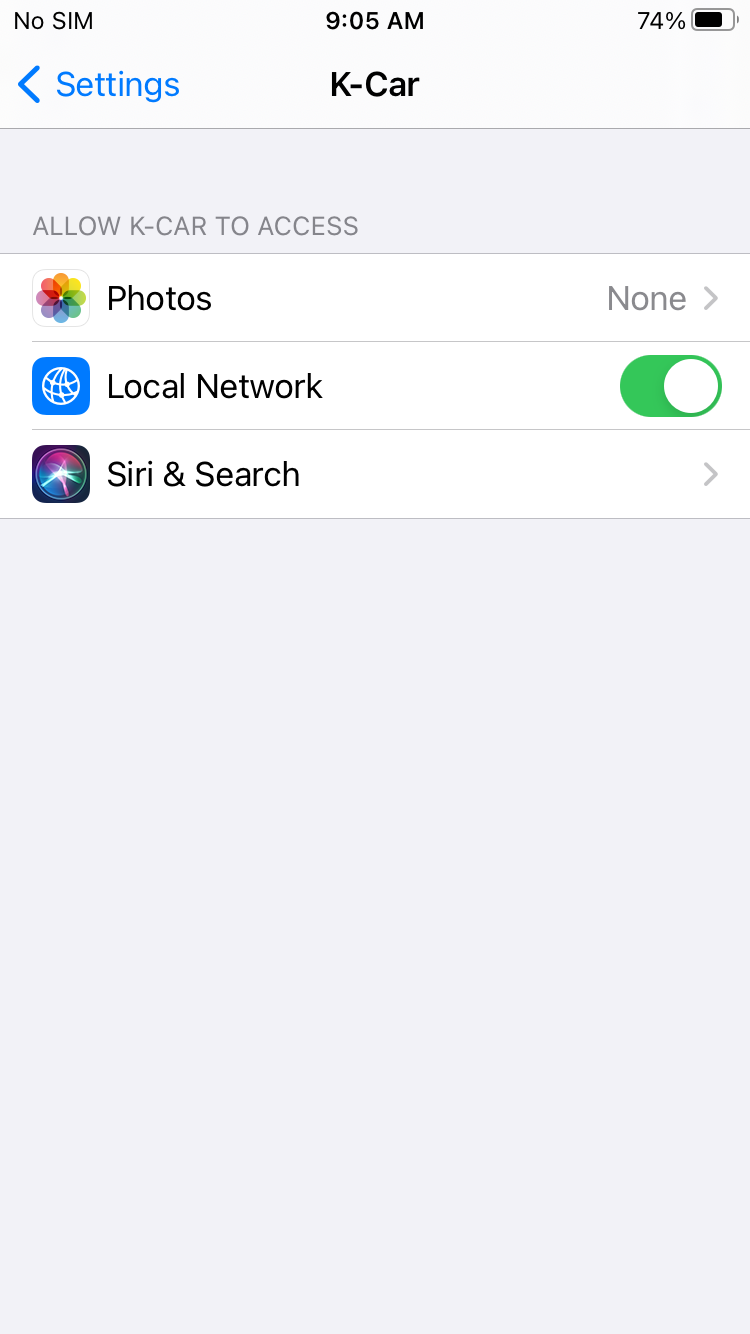

K-car app for andorid system mobile need 5.0 vision above . it can support IOS13.1 above system Iphone, and the Latest IOS system phone need open
local network to display

https://youtu.be/ugxkQvmPqZw

I. Product Introduction

K-Car is the best smart car product, which can be installed in front, back, left and right of the blind area, to achieve safe driving. Widely used in cars, trucks, motor homes,trailers, buses, trucks, engineering vehicles and other vehicles.

Simple installation, low cost implementation of intelligent visualastern.

The U.S. imports H. 264 chips with clear and smooth images.

High power WIFI module, strong signal, long transmission distance.

2 main functions

Intelligent video recording function

Video recording and video sharing functions can be achieved by connecting smart devices with WIFI of the camera

Functions of the intelligent electronic rearview mirror

Through the device end to watch in real time, after entering the rear view video, you can watch in real time. View the reason behind the vehicle and view from the whole perspectiv

Intelligent forward-looking functions

It can be installed in front, rear, left and right visual blind area, and the software can be opened for real-time monitoring.

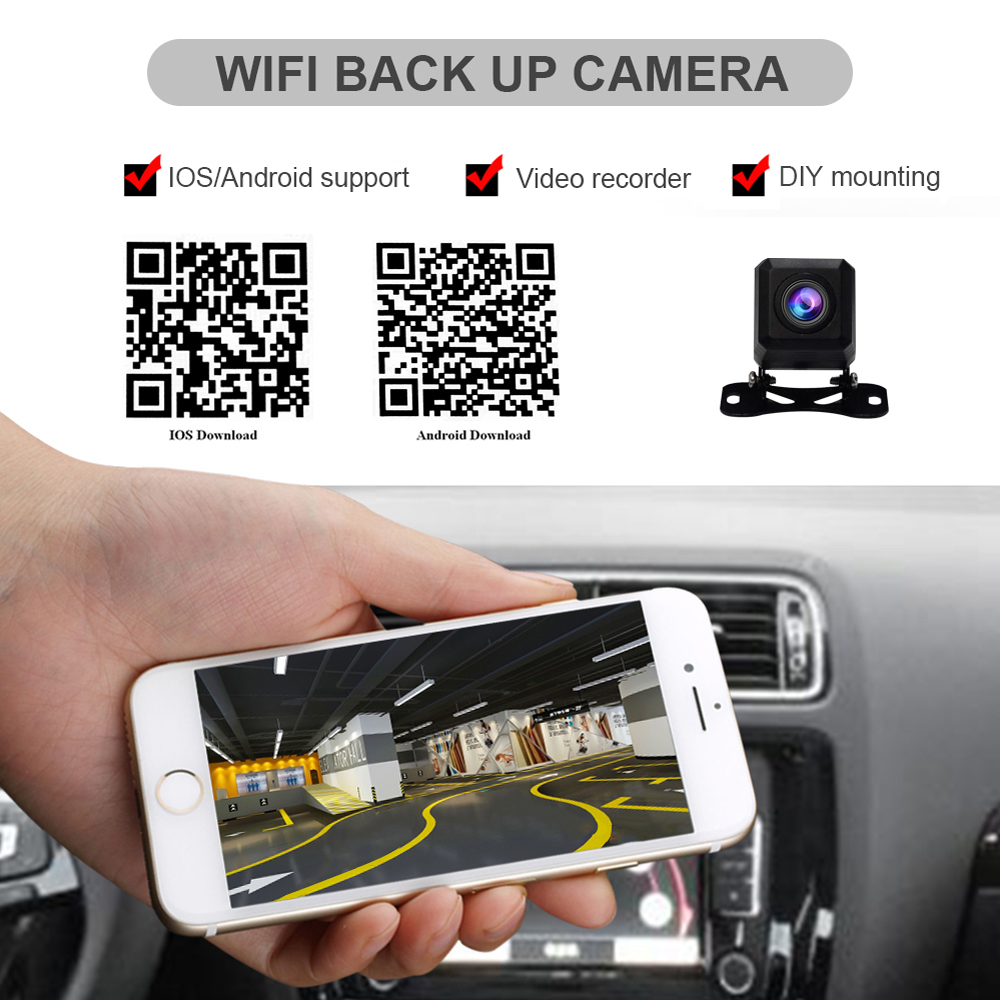

3 Download the application.

Scanning and downloading qr codes; Open the scan window and scan the qr code of the product manual.

Search for downloa

Apple devices enter the APP Srore search; K-Car  download

Android devices go into Google play search; K-Car  download

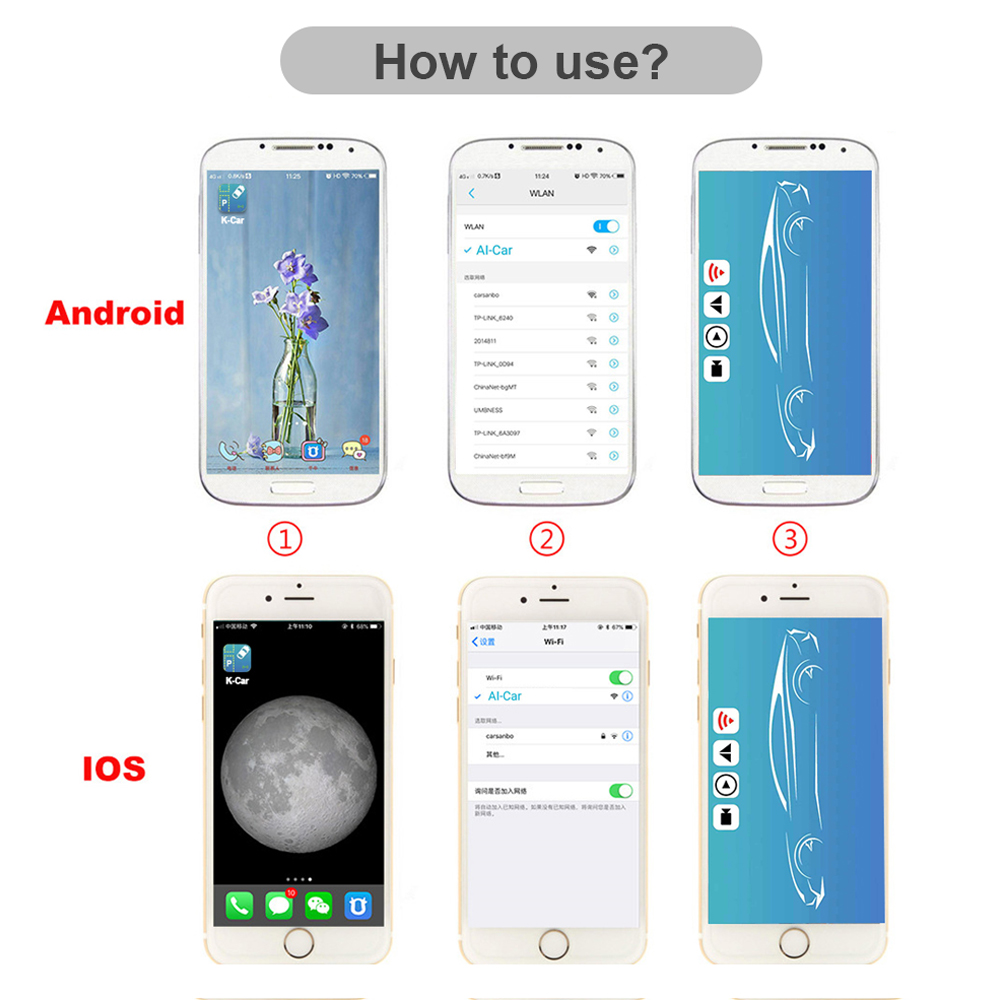

4. Use skills

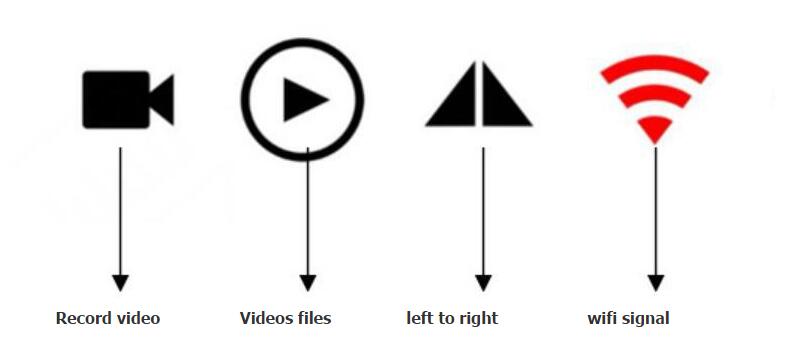

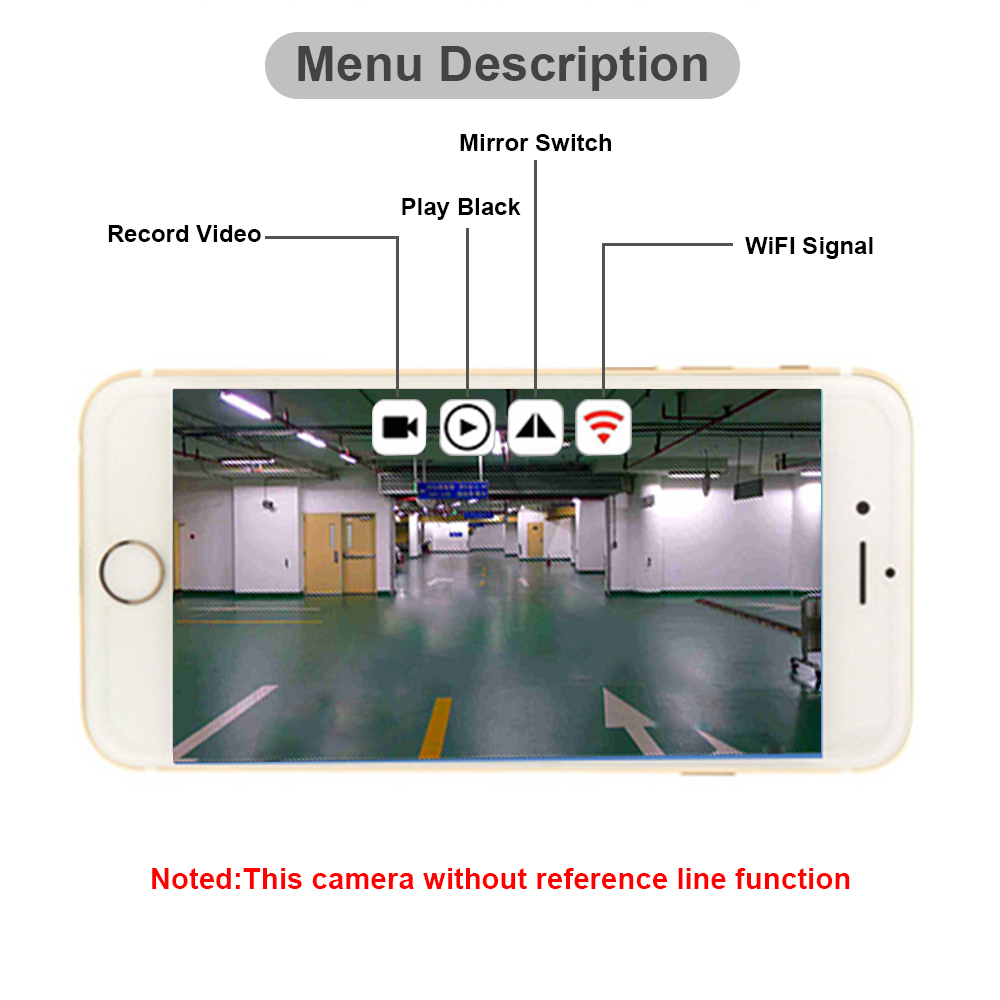

Terminal interface icon

 Android device use; After connecting to the WIFI of K-Car SSID, the APP video will pop up automatically. When 4G network is needed, click exit, and the connection between K-Car and the software background will be automatically disconnected.

IOS old system usage

1.After software installation, set static IP; Connect to AI-Car name WIFI,

2.enter the WIFI setting interface, remember the two lines of Numbers under"DHCP"(IP address. Subnet mask), click"static"here, and fill the two lines of Numbers under the static button (IP address. Subnet mask).

3.Click back to set successful. Static IP can be set to realize simultaneous communication between WIFI and 4G without affecting the phone's Internet access.

New IOS system system usage;

 1 Find AI-Car name WiFi.

 2 Remember in the IPV4 address bar; IP Address, Subnet Mask, Router, these three lines of Numbers.

3 Click"Configure IP", select"Manual", fill in the following three rows of Numbers in the bottom, click save.

 5. Product installation (very important, please read carefully)

1. First, turn off the on-board power supply, and it is strictly prohibited to power the camera without a good connection.

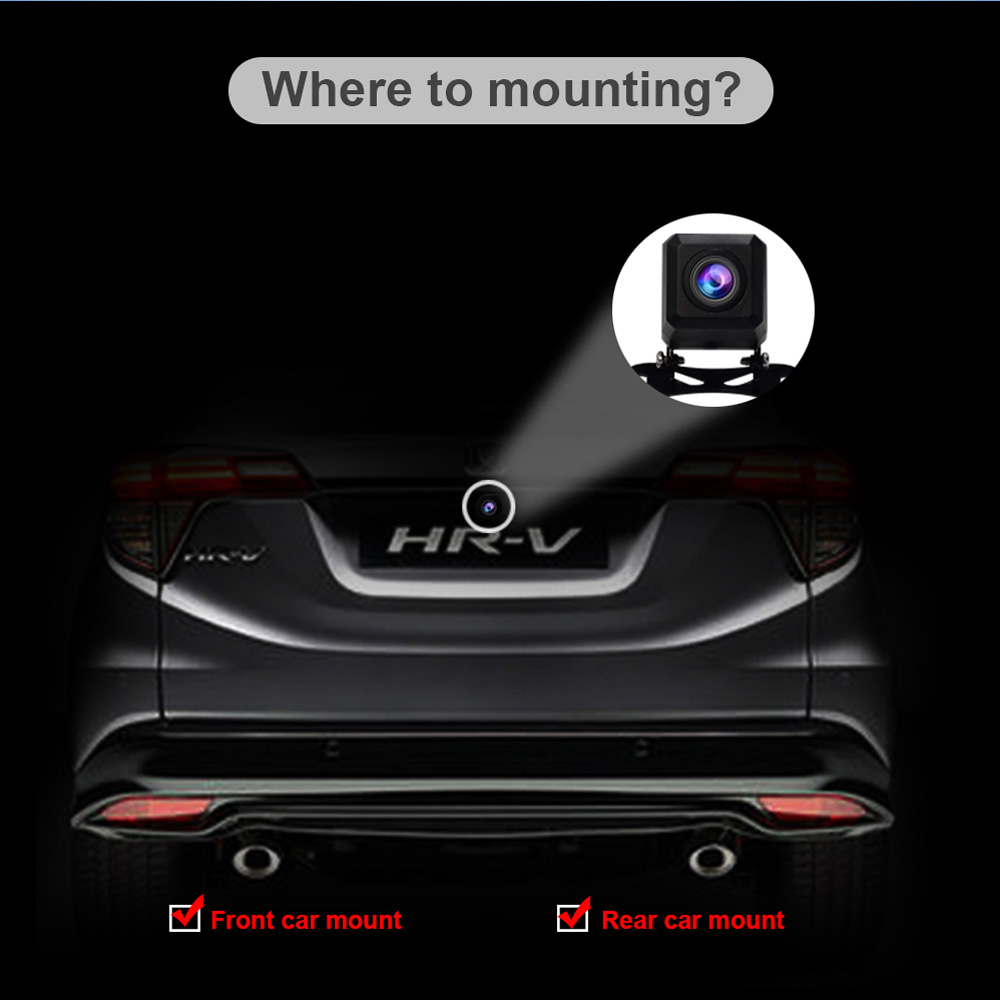

Determine the installation position of vehicle camera. (there are two installation methods)

In the first installation method, select the position of the camera and place the power cord flat in the car. Adjust your viewing Angle, connect two power connectors, plug in the cigarette lighter, and press the switch.

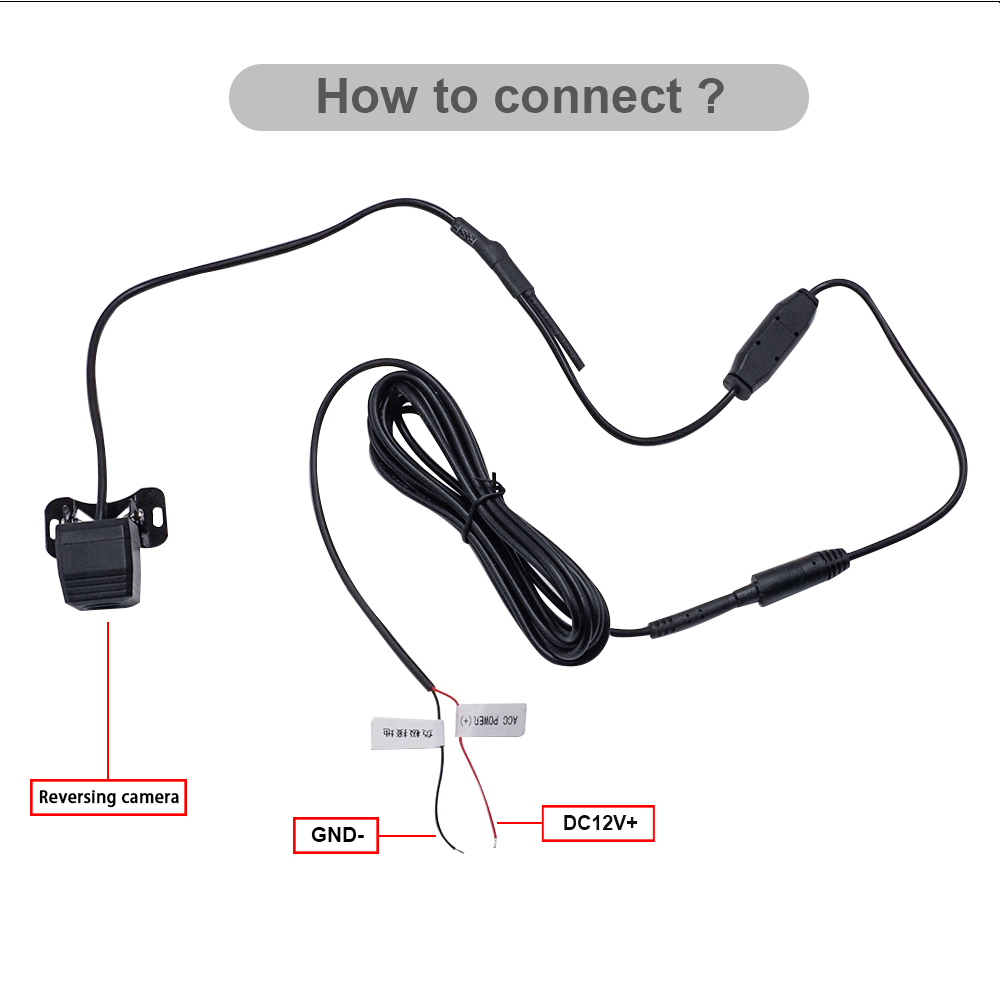

2.The second installation method, cut open cigarette lighter switch position of the wire, red and black two wire. Red power cord is connected to ACC power supply 12V+ positive position of vehicle fuse box. Black power cord is connected to negative GND wire harness of vehicle, which can be used when starting the vehicle.

3.Connect the power cord to the correct position, adjust the best Angle of view, and fix the support with 3M adhesive.

6. Troubleshooting

1. No image

Make sure the camera is connected correctly, open the WIFI list on your phone, and see if you can find the F-Car hotspot generated by the camera.

2. Background operation

You need to turn on the phone Settings and set it to run in the background.

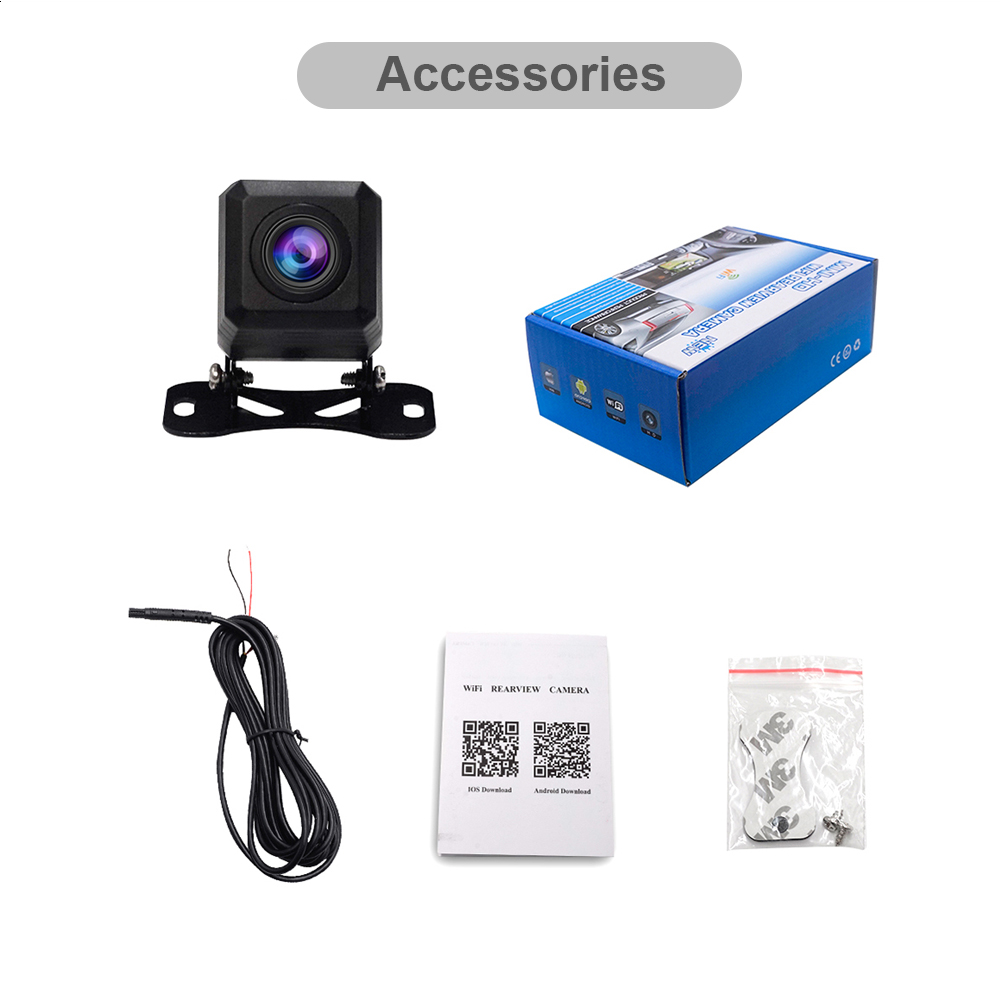

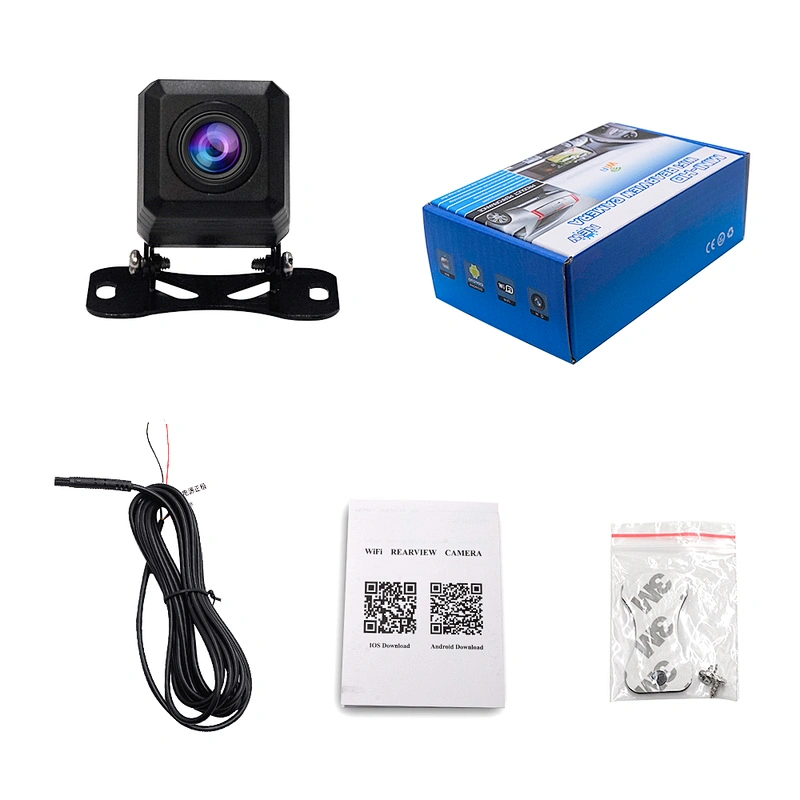

Product list

Camera,screw,extension cord,specification,3M adhesive
